Ultrasonic Welding Machines: Features, Benefits, and Use Cases

Directory of Topics

• Fundamentals and Operating Principles of Ultrasonic Welding

• System Architecture and Generator Mechanics

• Core Industrial Features of Modern Ultrasonic Welders

• Key Benefits in High-Precision Manufacturing

• Cross-Industry Applications and Real-World Use Cases

• Process Optimization and Acoustic Stack Maintenance

Fundamentals and Operating Principles of Ultrasonic Welding

Ultrasonic welding operates by converting 15 kHz to 40 kHz electrical signals into high-frequency mechanical oscillations that generate localized interfacial friction and intermolecular heating under pressure to create clean, high-strength solid-state welds. Handheld Ultrasonic Welding leverages this exact physics to deliver targeted spot welds, riveting, and staking operations in complex physical spaces where fixed automated systems cannot easily reach.

The foundational mechanics of ultrasonic joining rely on localized frictional thermal generation. Unlike conventional thermal welding methods that apply external heat directly through conduction or radiant elements—often damaging surrounding polymers—ultrasonic systems introduce microscopic mechanical vibrations into the target substrate. When two thermoplastic parts are compressed under controlled mechanical force, high-frequency vibratory energy passes through the upper component to the contact interface, known as the joint area. The rapid stress cycles induce cyclic strain and interfacial friction, causing the polymer chains to soften and flow within fractions of a second. Handheld Ultrasonic Welding systems maximize this energy transfer by focusing mechanical displacement directly onto specified energetic points, preserving material elasticity elsewhere.

The phase transition from solid polymer to visco-elastic melt state occurs rapidly due to hysteresis loss within the material matrix. Amorphous polymers such as ABS, Polycarbonate (PC), and Polystyrene (PS) feature randomly ordered molecular chains that absorb ultrasonic vibrations exceptionally well over a wide temperature band. Semi-crystalline polymers like Polypropylene (PP), Polyamide (PA), and Polyethylene (PE) possess rigid, highly ordered crystalline lattices that require higher acoustic energy thresholds to trigger chain melting. In these applications, specialized joint designs, such as triangular energy directors, are molded directly into the part interface to concentrate acoustic energy into a tight, sacrificial volume, ensuring rapid, predictable melt initiation during Handheld Ultrasonic Welding routines.

Once the localized thermal threshold is reached, ultrasonic vibration is ceased while mechanical holding pressure is maintained. This brief solidification phase allows molten polymer chains to interdiffuse across the interface, recrystallizing or re-entangling to form a cohesive, monolithic bond. The entire process—from initial acoustic application to final pressure hold—typically transpires in under 500 milliseconds. Because heat generation is strictly confined to the joint interface, internal stresses are minimized, structural distortion is prevented, and aesthetics remain pristine. Handheld Ultrasonic Welding applications particularly benefit from this low thermal footprint when operators execute manual spot repairs or localized staking on finished cosmetic panels.

Operational Tip - Energy Director Design: When configuring joint geometry for semi-crystalline thermoplastics in Handheld Ultrasonic Welding, always specify a triangular energy director with a 60-degree peak angle. This sharp profile concentrates high-frequency vibrations at the precise point of contact, reducing overall weld time by up to 40% and preventing thermal degradation of the surrounding resin.

System Architecture and Generator Mechanics

An industrial ultrasonic welding machine comprises four main acoustic stack components: an electronic power generator, a piezoceramic transducer, an acoustic amplitude booster, and a custom-contoured welding horn (sonotrode). Handheld Ultrasonic Welding relies heavily on lightweight transducers and highly efficient generators to maintain constant frequency tracking during manual operation.

The performance of any ultrasonic assembly system hinges on the electrical and mechanical stability of its acoustic stack. The power generator acts as the brain of the system, drawing standard line voltage (110V/220V at 50/60Hz) and converting it into a continuous high-frequency, high-voltage sinusoidal AC signal, typically operating at 20 kHz, 30 kHz, or 35 kHz. Advanced digital generators continuously monitor load impedance, adjusting phase angles in real time to match the natural resonant frequency of the connected horn and booster. Handheld Ultrasonic Welding setups demand high frequency stability from the generator to prevent stall conditions when operators change manual orientation or apply variable pressing force.

The electrical signal feeds directly into the ultrasonic transducer (converter), which houses stacked piezoceramic disks (typically lead zirconate titanate) sandwiched between aluminum and titanium end blocks. Utilizing the inverse piezoelectric effect, these ceramic discs expand and contract axially in direct synchronization with the applied AC voltage frequency. This produces a micro-mechanical displacement output, typically ranging between 5 to 20 micrometers peak-to-peak. To tailor this mechanical output to specific material requirements in Handheld Ultrasonic Welding, a metallic booster tuned to the operating frequency is attached. Boosters modify amplitude by altering cross-sectional mass ratios, multiplying or attenuating displacement before it reaches the final sonotrode.

The sonotrode, or welding horn, directly contacts the workpiece to transmit acoustic vibrations into the plastic or non-ferrous substrate. Engineered using finite element analysis (FEA), sonotrodes are crafted from high-strength titanium alloys (such as Ti-6Al-4V), aircraft-grade aluminum, or hardened tool steel to maintain uniform amplitude across the entire contact face. In manual spot welding or staking operations, horn ergonomics and thermal dissipation become critical factors. Handheld Ultrasonic Welding applications require compact, durable sonotrodes designed to withstand dynamic axial forces without experiencing frequency drift or transverse vibrational modes that could break internal ceramic stacks.

Core Industrial Features of Modern Ultrasonic Welders

Modern ultrasonic welding machines feature digital automatic frequency tuning, intelligent multi-mode weld triggers, precise amplitude control, digital phase-lock loops, and real-time process monitoring. Handheld Ultrasonic Welding systems integrate these advanced features into compact, portable chassis, enabling high-precision joinery without sacrificing operational mobility.

The evolution of solid-state digital signal processing (DSP) has transformed ultrasonic welding from an operator-dependent craft into a tightly controlled, highly repeatable industrial process. Primary among modern equipment features is automatic frequency tracking. During extended production runs, heat build-up causes minor thermal expansion within the metallic horn, shifting its natural resonant frequency. Advanced digital generators continuously scan and lock onto frequency shifts within milliseconds, preventing generator tripping, acoustic stalling, and horn damage. Handheld Ultrasonic Welding systems rely on this seamless auto-tuning, as manual handling variations inherently create rapid shift conditions.

Precision energy control modes represent another core technological advancement. Rather than relying solely on simplistic timers—which can introduce variation if line pressure fluctuates—modern units allow engineers to weld by time, absolute distance, collapse distance, total peak power, or cumulative energy (measured in Joules). When welding by total energy, the generator delivers high-frequency vibration until the exact preset energy threshold is absorbed by the joint, automatically compensating for minor dimensional tolerances in molded plastic parts. Handheld Ultrasonic Welding tools configured with digital energy modes deliver uniform spot welds regardless of slight variations in operator manual pressure.

Furthermore, dynamic amplitude adjustment gives process engineers granular control over energy input throughout the weld cycle. High amplitude can be programmed during the initial phase to break down energy directors and rapidly initiate the melt pool, after which amplitude is automatically stepped down to stabilize material flow and prevent flash expulsion. Integrated data logging, USB/Ethernet output, and PLC integration capabilities allow modern plants to capture peak power, weld duration, and total energy for every cycle, satisfying strict ISO 13485 (medical) and IATF 16949 (automotive) quality management standards in Handheld Ultrasonic Welding deployments.

Maintenance Protocol - Acoustic Stack Maintenance: Periodically inspect the mating faces between the transducer, booster, and horn. Apply a thin film of high-vacuum silicone grease (or fit thin bronze washers) and torque all threaded studs to manufacturer specifications (typically 30-35 Nm for 20 kHz stacks). Improper stud torque creates interfacial acoustic reflections in Handheld Ultrasonic Welding setups, leading to excessive heat buildup, erratic frequency locks, and internal transducer piezoceramic cracking.

Key Benefits in High-Precision Manufacturing

The primary benefits of ultrasonic welding include sub-second cycle speeds, complete elimination of chemical consumables, zero thermal substrate damage, minimal energy consumption, exceptional joint strength, and low operational overhead. Handheld Ultrasonic Welding amplifies these benefits by offering on-demand manual flexibility and reduced capital equipment costs for low-to-medium volume manufacturing.

In competitive industrial manufacturing, process velocity directly dictates throughput and margins. Ultrasonic welding delivers processing speeds unmatched by conventional joining techniques. Traditional hot-plate welding, spin welding, or solvent bonding processes require heating cycles, mechanical dwelling, or cure times ranging from tens of seconds to hours. Ultrasonic cycles typically conclude in under one second. Handheld Ultrasonic Welding enables operators to rapidly execute multiple spot welds across large interior automotive panels or non-woven filter assemblies in rapid sequence, significantly shortening takt times without complex automation tooling.

1. Operational Cost Elimination: Chemical adhesives, solvents, screws, rivets, and mechanical clips represent ongoing recurring costs. By eliminating external consumables, ultrasonic joining directly reduces unit manufacturing costs, eliminates inventory SKU management, and removes environmental hazard liabilities associated with volatile organic compound (VOC) adhesive off-gassing. Furthermore, parts assembled via Handheld Ultrasonic Welding can be recycled easily at end-of-life because they consist of pure, unmixed polymer resins without metal clip contamination.

2. Minimal Heat-Affected Zone (HAZ): Direct heat application methods frequently cause warping, thermal discoloration, surface sink marks, or damage to embedded electronic components located near the joint plane. Because ultrasonic friction generates localized melt strictly at energy director interfaces, heat dissipates almost immediately upon vibration termination. This micro-localized thermal profile ensured by Handheld Ultrasonic Welding maintains pristine exterior cosmetic finishes and permits safe assembly of delicate medical sensors, micro-circuitry, and fluidic chambers.

3. High Structural Bond Integrity: When proper joint geometry and process parameters are maintained, Handheld Ultrasonic Welding achieves hermetic liquid- and gas-tight seals capable of withstanding severe internal pressure testing. The resulting bond exhibits tensile and shear strength approaching that of the virgin parent polymer. Handheld Ultrasonic Welding provides this robust structural integrity in spot-joining applications, replacing loose mechanical fasteners that can rattle, back out, or fail under continuous dynamic vibration.

Cross-Industry Applications and Real-World Use Cases

Ultrasonic welding is heavily utilized across the automotive, medical device, consumer electronics, industrial packaging, and non-woven textile sectors for spot joining, staking, continuous slitting, and hermetic sealing. Handheld Ultrasonic Welding serves as an indispensable tool for automotive door panel trimming, prototype assembly, localized repairs, and multi-point synthetic fabric tacking.

1. Automotive Manufacturing: Modern automotive interiors feature extensive thermoplastic assemblies, including instrument panels, door trim cards, air ducts, pillar covers, and engine bay acoustic dampening pads. Machine operators utilize Handheld Ultrasonic Welding tools equipped with specialized spot welding or staking sonotrodes to fix sound-absorbing insulation felts onto polypropylene door liners. The process eliminates mechanical clips that cause squeak-and-rattle noise (NVH), while ensuring rapid assembly without burning surface-visible A-class automotive textiles.

2. Medical Device Assembly: Medical devices require absolute cleanliness, particulate minimization, bio-compatibility, and reliable hermetic containment. Solvents and adhesives are strictly regulated due to chemical leaching risks. Handheld Ultrasonic Welding and automated ultrasonic systems serve as premier methods for joining fluid filters, blood oxygenators, surgical face masks, IV drip chambers, and diagnostic test cassettes. The sub-second acoustic process seals medical-grade polymers (such as Polycarbonate and Acrylic) in ISO Class 7 cleanroom environments without generating airborne particulates or chemical vapors.

3. Consumer Electronics and Appliances: From smartphone enclosures and battery pack casings to electrical wire harness splicing, high-frequency ultrasonic joining delivers precise aesthetic and structural results. In lithium-ion battery production, micro-ultrasonic metal welding joins stacked copper and aluminum foils to terminal tabs without melting delicate metallic foil sheets. In appliance manufacturing, Handheld Ultrasonic Welding allows operators to stake internal wiring guides and structural brackets inside refrigerator liners where automated machine clearance is restricted.

Industrial Working Principle - Ultrasonic Staking Mechanics: Ultrasonic staking replaces traditional heat-staking by using a custom-contoured horn tip in Handheld Ultrasonic Welding to reshape a molded plastic stud over a secondary non-weldable component (such as a metal bracket or PCB). Acoustic energy melts the top of the plastic stud under downward pressure, forming a smooth, locked retaining head in under 0.5 seconds without scorching the plastic or heating adjacent metal components.

Process Optimization and Acoustic Stack Maintenance

Optimizing ultrasonic welding performance requires systematic alignment of acoustic amplitude, pneumatic pressing force, trigger threshold, and weld energy, supported by routine preventive stack maintenance. Handheld Ultrasonic Welding stability depends on proper horn face alignment, correct manual trigger pressure, and pairing with digital auto-tuning generators.

Achieving repeatable weld quality in industrial production requires process engineers to look beyond basic equipment settings and analyze the complete acoustic-material system dynamic. The three primary independent control variables in Handheld Ultrasonic Welding are Amplitude (percentage of total mechanical displacement), Force (axial pressure exerted by pneumatic cylinder or manual pressure), and Energy/Time threshold. If the applied force is too high relative to amplitude, the horn can dampen acoustic oscillations, causing generator overload. Conversely, if force is insufficient, the horn tip will bounce against the part interface, causing surface pitting, severe acoustic noise, and poor thermal coupling.

Preventive maintenance of acoustic tooling is essential for prolonging transducer life and ensuring process consistency in Handheld Ultrasonic Welding. Sonotrodes undergo millions of expansion and contraction cycles per hour; over time, mechanical micro-fatigue or face erosion can occur. Engineers should routinely perform acoustic spectrum analysis to verify that horn resonant frequencies remain within design tolerances. Furthermore, Handheld Ultrasonic Welding guns and automated actuator slides must be checked for axial alignment. Angular misalignment between the horn face and the part surface causes localized stress concentration, resulting in uneven flash, incomplete joint sealing, and premature horn cracking.

Finally, choosing the right joint configuration during the product design phase is the single most effective way to guarantee welding success. Butt joints without energy directors should be avoided in favor of tongue-and-groove or shear joint geometries. Shear joints are ideal for semi-crystalline resins and hermetic sealing requirements in Handheld Ultrasonic Welding because they maintain continuous mechanical rubbing and progressive melting along vertical sidewalls during part collapse. By integrating optimized joint design with dynamic digital generators, manufacturers can achieve consistent, defect-free production runs with minimal operator intervention.

To upgrade your manual assembly line with highly reliable acoustic driving electronics engineered for spot welding, staking, and localized joinery, review our featured system specifications:

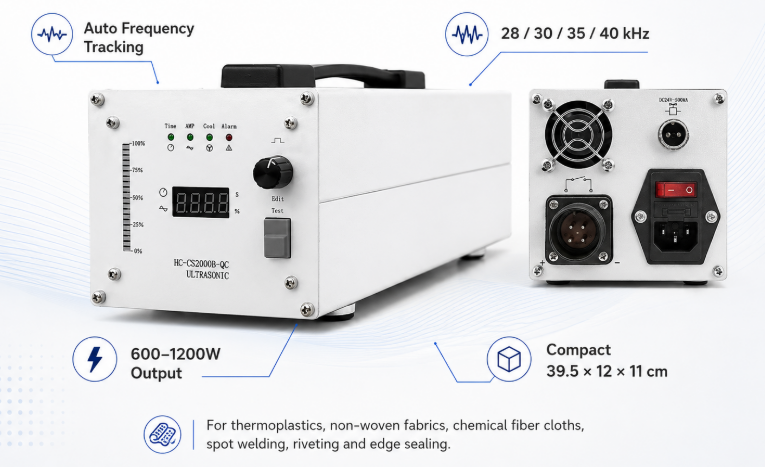

2000B Series Ultrasonic Generator System

Conclusion and Summary

Ultrasonic welding stands as a premier joining technology for modern industrial manufacturing, offering unparalleled speed, high bond integrity, precise thermal control, and green operational credentials by eliminating chemical adhesives and mechanical fasteners. Understanding the interplay between piezoceramic transduction, acoustic stack tuning, digital generator control, and polymer joint geometry enables engineering teams to maximize output while maintaining strict ISO quality standards. Whether deploying fully automated multi-axis robotic cells or utilizing Handheld Ultrasonic Welding tools for flexible manual spot joining and interior trimming, selecting robust energy generation hardware forms the bedrock of assembly success. By adhering to rigorous parameter tuning and preventive acoustic maintenance protocols, manufacturers can secure long-term operational reliability, reduced unit production costs, and superior product performance across global export markets.
