Handheld ultrasonic welding is an advanced localized friction joining process that converts high-frequency electrical energy into mechanical acoustic vibrations, allowing operators to rapidly bond thermoplastic components, synthetic textiles, and non-woven materials with high mechanical strength, zero chemical additives, and minimal thermal distortion.
Section | Summary |
Fundamental Physics of Handheld Ultrasonic Welding | Provides an in-depth breakdown of acoustic conversion, piezoelectric transduction, localized friction heat generation, and molecular chain entanglement during thermoplastic bonding. |
Core Components and Acoustic System Architecture | Examines the functional components including high-frequency generators, transducers, amplitude boosters, custom sonotrode horns, and ergonomics. |
Operational Techniques: Spot Welding, Riveting, and Staking | Analyzes specific joining methodologies, detailing material flow mechanics, horn geometry selection, and stress distribution across diverse joint designs. |
Industrial Applications Across Automotive, Medical, and Electronics | Explores practical deployment in automotive interior trim, medical device encapsulation, synthetic garment sealing, and electronic enclosure fabrication. |
Key Advantages, Technical Limitations, and Process Optimization | Evaluates key metrics including energy efficiency, weld cycle speed, material compatibility constraints, and troubleshooting parameter drift. |
Handheld ultrasonic welding operates by projecting high-frequency mechanical vibrations ranging between 20 kHz and 40 kHz directly onto thermoplastic interfaces, creating microscopic interfacial friction and rapid viscoelastic heating without altering surrounding bulk material properties.
The mechanics of handheld ultrasonic welding rely entirely on converting solid-state electric signals into localized acoustic waves. When a handheld ultrasonic welding device contacts two thermoplastic parts under controlled manual or pneumatic force, the high-frequency acoustic waves pass through the upper substrate. At the contact interface, boundary friction and internal intermolecular friction dissipate acoustic energy into heat. As local temperature exceeds the glass transition temperature or melting point of the polymer, polymer chains disentangle and cross-diffuse across the joint line within milliseconds. Once the acoustic vibration ceases, pressure is briefly maintained, allowing the polymer melt to crystallize and solidify into a monolithic bond exhibiting mechanical strength comparable to the base material.
In industrial production environments, understanding the dissipation of acoustic power is essential for controlling joint quality. Unlike ambient thermal bonding or resistive heating, handheld ultrasonic welding is an internal energy generation process. Heat generation is highest at the boundary layer due to impedance mismatches between contact surfaces. Consequently, handheld ultrasonic welding minimizes thermal stresses, preventing warpage, discoloration, or thermal degradation of heat-sensitive components. The process efficiency depends heavily on polymer viscoelastic properties, loss modulus, and acoustic impedance matching between the sonotrode horn and the workpiece.
From an engineering perspective, polymer suitability plays a critical role in handheld ultrasonic welding outcomes. Amorphous polymers such as polycarbonate, polystyrene, and ABS exhibit broad softening ranges and low attenuation coefficients, making them exceptionally compatible with handheld ultrasonic welding across variable distances from the horn tip. Conversely, semi-crystalline polymers like polypropylene, polyamide, and polyethylene possess sharp melting points and dense molecular structures that absorb and scatter acoustic waves quickly. Successfully performing handheld ultrasonic welding on semi-crystalline resins requires higher acoustic amplitude, precise horn alignment, and specialized joint profiles such as energy directors or shear joints to concentrate acoustic energy effectively.
Polymer Classification | Typical Materials | Acoustic Attenuation | Handheld Ultrasonic Welding Feasibility |
Amorphous Polymers | ABS, Polystyrene (PS), Polycarbonate (PC) | Low Attenuation | Excellent; easy acoustic wave propagation over long distances. |
Semi-Crystalline Polymers | Polypropylene (PP), Polyethylene (PE), Nylon (PA) | High Attenuation | Good; requires high amplitude and near-field contact. |
Blended Alloys | PC/ABS, PBT/PC | Moderate Attenuation | High; robust mechanical strength with optimized generators. |
The acoustic architecture of a handheld ultrasonic welding system comprises five critical sub-assemblies: an intelligent high-frequency generator, a piezoelectric converter transducer, an amplitude booster, an application-specific sonotrode horn, and an ergonomic handpiece casing.
The operational reliability of handheld ultrasonic welding equipment rests upon the dynamic stability of its power supply. The high-frequency generator converts standard 50/60 Hz single-phase AC electricity into high-voltage ultrasonic electrical energy at precise frequencies such as 20 kHz, 30 kHz, or 35 kHz. Modern handheld ultrasonic welding applications require advanced digital generators capable of automatic frequency tracking, resonant frequency matching, and real-time load compensation. When an operator applies manual pressure using a handheld ultrasonic welding gun, the acoustic load changes dynamically. An intelligent generator compensates instantly by adjusting voltage and phase to prevent frequency lock-out, transducer stall, or sonotrode overheating.
Connected directly to the generator output is the converter transducer, which employs high-purity lead zirconate titanate (PZT) piezoelectric ceramic discs sandwiched between precision-machined titanium or aluminum blocks. When excited by high-voltage AC current, these ceramic discs expand and contract longitudinally, converting electrical energy into mechanical stroke amplitude ranging from 5 to 20 micrometers. Attached to the transducer is the acoustic booster, a tuned mass-spring resonator designed to either amplify or reduce the vibrational stroke amplitude based on area ratio changes. Finally, the customized sonotrode horn delivers acoustic energy directly to the target workpiece.
In our engineering evaluations and feedback from European tier-1 automotive clients, ergonomics and weight distribution in handheld ultrasonic welding pistols are primary operational selection criteria. Operators performing hundreds of spot welds per shift require lightweight guns equipped with heat-isolated housing, trigger-activated microswitches, and low-attenuation cables. Moreover, European industrial buyers frequently prioritize automatic frequency tuning and digital power control to ensure that variable operator hand pressure does not cause variance in joint strength across multi-station manual assembly lines.
System Component | Primary Material / Type | Functional Role in Handheld Ultrasonic Welding |
Ultrasonic Generator | Solid-state Digital DSP / IGBT | Converts line AC power into high-frequency, high-voltage ultrasonic power with auto-tuning. |
Piezoelectric Transducer | PZT Ceramics & Titanium Backing | Converts high-frequency electrical signals into axial mechanical vibrations. |
Acoustic Booster | Titanium Grade 5 / Aircraft Aluminum | Modifies acoustic amplitude ratio and provides rigid mechanical mounting. |
Sonotrode Horn | Titanium, Hardened Steel, Aluminum | Transmits mechanical energy directly to the workpiece; shaped to match part geometry. |
Handheld Pistol Enclosure | High-Impact Polymer / Lightweight Alloy | Provides ergonomic housing, trigger mechanism, thermal insulation, and operator safety. |
Handheld ultrasonic welding encompasses versatile joining modalities including ultrasonic spot welding, ultrasonic staking, ultrasonic riveting, and continuous plunge cutting, each tailored to specific joint geometries and structural demands.
Ultrasonic spot welding is the most widely utilized method in handheld ultrasonic welding operations. During spot welding, a specialized pin-style sonotrode tip penetrates the top plastic sheet while gripping the lower sheet against a backing anvil or nested fixture. The acoustic friction melts the plastic at the interface, forming a clean circular weld nugget without pre-punching holes. This technique is ideal for joining large flat panels, corrugated plastic sheets, automotive sound-deadening insulation, and non-woven fabric layers where continuous seam welding is impractical.
Ultrasonic staking and riveting offer robust solutions for joining dissimilar materials, such as bonding plastic components to metal plates, printed circuit boards, or composite panels. In ultrasonic staking, a molded plastic stud protrudes through a hole in the mating component. The handheld ultrasonic welding horn features a concave cavity shaped like a rivet head. As the vibrating horn presses down on the plastic stud, the stud melts, reshapes, and solidifies into a tight retaining head, clamping the dissimilar substrate firmly in place without thread stress or mechanical fasteners.
Selecting the appropriate process technique for handheld ultrasonic welding depends on material thickness, structural shear requirements, and surface finish expectations. Horn design must account for wave reflection, standing wave nodes, and tip wear resistance. For high-volume production involving abrasive filled resins such as glass-reinforced nylon, sonotrodes manufactured from hardened D2 tool steel or carbide-coated titanium are specified to prevent rapid face erosion and maintain consistent weld depth.
Spot Welding: Utilizes a radial displacement tip to penetrate upper layers and fuse lower substrates into localized joint nuggets.
Staking & Riveting: Reform molded plastic studs over secondary metal or PCB components to create vibration-proof mechanical locks.
Insulation Pad Tacking: Uses multi-point knurled horn faces to pin acoustic insulation liners inside automotive wheel wells and door cards.
Sonotrode Horn Maintenance Tip: Regularly inspect the working surface of handheld ultrasonic welding sonotrodes using dye penetrant testing or acoustic spectrum analyzer monitoring. Flatness deviations exceeding 0.02 mm or surface micro-cracking alter the acoustic resonance frequency, leading to generator overload errors and inconsistent melt depth across assembly batches.
Industrial adoption of handheld ultrasonic welding spans automotive interior assembly, sterile medical device encapsulation, synthetic garment sealing, and electronic housing fabrication due to its high speed, cleanliness, and localized energy application.
In the automotive sector, handheld ultrasonic welding provides unmatched flexibility for offline assembly and rework stations. Car door interiors, instrument panel trims, bumper sensor brackets, engine bay soundproof felts, and trunk liners frequently require localized spot welds where rigid automated gantries cannot reach. Using a lightweight handheld ultrasonic welding pistol, line operators can rapidly secure wiring harness clips, tack acoustic pads, and rivet chrome trim accents with cycle times under one second per point.
The medical and healthcare manufacturing industries rely heavily on handheld ultrasonic welding for cleanroom assembly. Traditional solvent bonding or hot-melt adhesives introduce volatile organic compounds (VOCs) and chemical contaminants unacceptable in medical devices. Handheld ultrasonic welding creates hermetic, particulate-free joints for respiratory filter housings, IV tubing manifolds, surgical drape seams, and diagnostic cassette seals. The process achieves immediate bond strength without post-weld curing or chemical exposure.
Electronics and consumer product manufacturing utilize handheld ultrasonic welding to secure internal batteries, attach strain relief boots on specialized cabling, and seal small plastic enclosures containing delicate sensors. Because acoustic energy is concentrated precisely at the weld interface, sensitive internal microelectronics, MEMS sensors, and delicate surface-mount components remain protected from thermal shock and high-g mechanical forces.
Upgrade your industrial manual welding stations with precision frequency matching and digital energy output control:

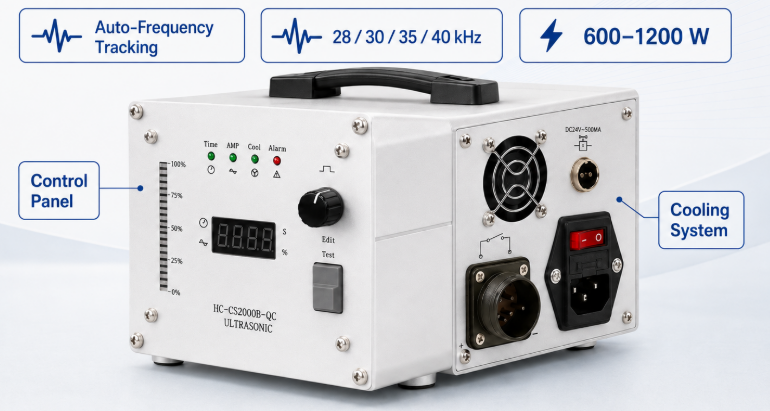

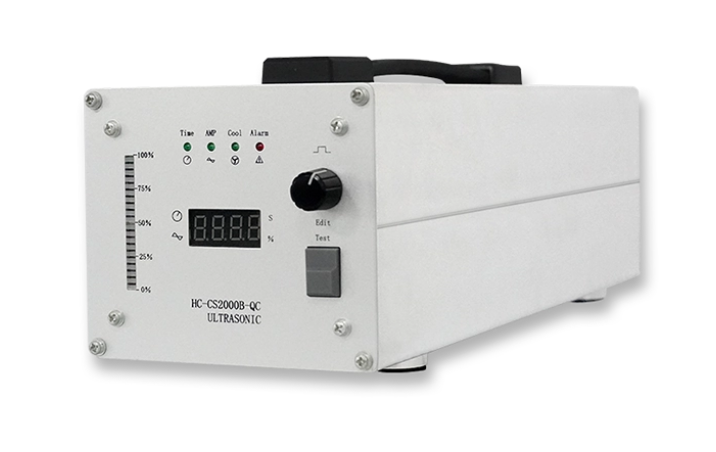

Precision Handheld Ultrasonic Welding Power Supply System
Key advantages of handheld ultrasonic welding include instant weld cycles under 1.5 seconds, zero consumable requirements, high energy efficiency, and superior aesthetic finish, balanced against physical limitations in wall thickness and joint access.
Evaluating handheld ultrasonic welding against alternative industrial joining methods highlights clear operational benefits. Mechanical fasteners like screws and rivets add weight, require pre-drilling, and induce stress concentrations. Thermal hot-plate welding and hot-air staking consume substantial continuous electrical power and demand long heating and cooling cycles. Handheld ultrasonic welding draws electrical power only during the brief active trigger cycle, reducing facility energy consumption by up to 75% compared to thermal heat-staking equipment.
However, process engineers must account for inherent technical constraints when implementing handheld ultrasonic welding. The technology is best suited for wall thicknesses below 4 mm per sheet. Extremely thick sections attenuate acoustic energy before it reaches the mating interface, causing localized surface flashing rather than true interfacial melting. Additionally, joint quality relies partly on operator technique, including consistent downward pressure and axial horn alignment. Implementing intelligent generators with energy-mode welding—where energy delivery stops automatically once a preset Joule threshold is reached—eliminates operator variance.
To optimize process stability in handheld ultrasonic welding, facility managers should establish standardized setup protocols. Monitoring generator amplitude output, setting tight frequency band limits, maintaining rigid workpiece holding fixtures, and verifying horn wear are vital steps. By integrating high-performance digital generators with robust handheld spot welding tools, industrial plants achieve exceptional process repeatability, zero defect rates, and maximum return on equipment investment.
Handheld ultrasonic welding stands out as a high-precision, eco-friendly, and cost-effective joining methodology for modern thermoplastic and synthetic fabric processing. By harnessing high-frequency acoustic friction, industrial manufacturers eliminate glue consumables, cut cycle times to fractions of a second, and maintain pristine surface aesthetics. Selecting high-grade acoustic components, optimizing joint geometry, and pairing handpieces with intelligent digital generators ensure long-term operational reliability across demanding automotive, medical, and electronic assembly environments.
