Understanding Handheld Ultrasonic Welding Technology
Key Features of High Performance Ultrasonic Generators
Industrial Applications and Material Compatibility
Ergonomic Design and Hardware Configurations
Technical Specifications and Operational Parameters
System Protection and Preventive Maintenance Protocols
Global Sourcing Evaluation for Industrial Ultrasonic Systems
As a senior industrial ultrasonic application engineer with over fifteen years on the factory floor, I have witnessed firsthand how joining technologies directly dictate production yield, line efficiency, and long-term joint reliability. Global manufacturing facilities in automotive interior assembly, medical non-woven converting, and precision electronics packaging face constant pressure to reduce cycle times while entirely eliminating costly consumables such as hot-melt adhesives, solvent cements, and mechanical rivets. Traditional thermal welding often introduces localized thermal degradation, unsightly flash, and prolonged cooling delays that constrain overall plant throughput.
Addressing these operational bottlenecks requires moving beyond brute-force heating toward precise acoustic energy control. Handheld ultrasonic welding equipment bridges the critical gap between rigid, high-cost automated cells and adaptable manual assembly stations. By converting standard line electrical energy into high-frequency mechanical oscillations, modern high-density acoustic systems induce rapid, localized intermolecular friction directly at the joint interface. This engineering approach achieves molecular bonding within milliseconds while maintaining low ambient temperature across surrounding material structures. In this technical guide, we analyze the operational physics, architectural components, operational parameters, and deployment strategies essential for procurement teams evaluating handheld ultrasonic welding solutions.
Handheld ultrasonic welding relies on high-frequency acoustic vibrations applied under pneumatic or manual pressure to create solid-state friction welds across thermoplastic and synthetic substrates.
The fundamental process converts high-frequency electrical energy into linear mechanical motion. An electronic generator converts standard AC power into high-voltage, high-frequency electrical signals oscillating between 28KHz and 40KHz. This output drives a piezoelectric transducer composed of lead zirconate titanate (PZT) ceramics, which expand and contract to produce microscopic longitudinal displacement. The mechanical vibration travels through a booster to the tuned welding horn, which transmits acoustic energy directly into the workpiece stack-up.
When high-frequency vibrations contact the polymer interface under compressive force, surface and intermolecular friction generate intense localized heat. Because thermoplastics possess low thermal conductivity, frictional energy cannot dissipate into the bulk material, melting the joint interface rapidly. Acoustic vibration ceases after a precise interval while holding pressure is maintained. The molten polymer solidifies quickly, forming a high-strength molecular bond without altering adjacent material properties.
Direct Energy Injection: Frictional heating occurs exclusively at the contact interface, preserving structural and cosmetic integrity across surrounding surfaces.
Consumable Elimination: Solid-state acoustic bonding removes the cost and storage footprint of solvent adhesives, hot-melts, and metal fasteners.
Hermetic Interface Sealing: Precise energy delivery produces uniform seam geometries capable of meeting airtight and liquid-tight sealing standards in industrial packaging.
High-performance ultrasonic generators utilize advanced phase-locked frequency tracking, dynamic digital amplitude control, and real-time load compensation to maintain acoustic stability during continuous handheld spot welding.
At the core of every handheld system, the generator determines process precision. Legacy analog power supplies rely on manual tuning potentiometers, leaving them susceptible to frequency drift caused by horn heating and acoustic load variations. Modern production lines require digital generators built around digital signal processors (DSPs) and equal-precision phase-locking technology. These digital architectures constantly track the resonant frequency of the transducer-horn assembly, performing real-time sub-millisecond phase adjustments to prevent acoustic decoupling.
User interface design directly impacts line operator accuracy and speed. Modern digital generators incorporate high-definition touchscreens that present operational parameters including instant frequency, active power draw, accumulated energy input, and fault diagnostics. Operators can establish strict operational windows, defining precise time-based or energy-based cutoff thresholds. Furthermore, integrated stepless amplitude control allows process engineers to fine-tune vibrational energy from 70% to 100% of nominal rating, accommodating delicate non-woven fabrics as easily as glass-filled resins without physical hardware changes.

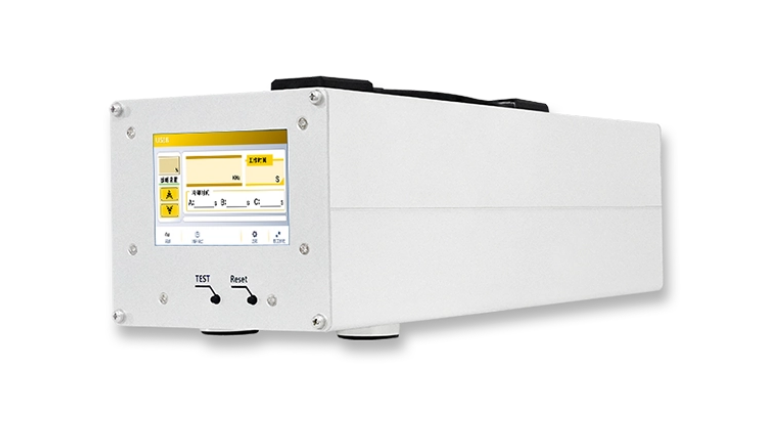

To explore engineered solutions for hand-held acoustic operations, review the features of the H20-B Series Handheld Welding Ultrasonic Generator.
Engineering Insight: During high-volume processing, operators often ask why high-precision generators utilize a 35KHz operating frequency instead of conventional 20KHz. In handheld spot welding and riveting, 35KHz acoustic configurations deliver optimal mechanical amplitude with a significantly smaller transducer mass and reduced horn dimensions. European automotive suppliers prefer 35KHz equipment because the lighter handpiece minimizes operator fatigue while providing the localized thermal density required for micro-riveting without burning surrounding surfaces.
Handheld ultrasonic welding excels at joining semi-crystalline and amorphous thermoplastics, non-woven polypropylene media, and synthetic textile blends across automotive, textile, packaging, and electronics assembly lines.
Material compatibility determines joint geometry, required vibrational amplitude, and weld time. Amorphous polymers like Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC), and Polystyrene (PS) display a broad softening temperature range, making them exceptionally easy to join using handheld ultrasonic welding. Acoustic energy propagates cleanly through these rigid structures with minimal attenuation. Conversely, semi-crystalline polymers such as Polyamide (Nylon), Polypropylene (PP), and Polyethylene (PE) possess sharp, distinct melting points. Joining these resins demands precise frequency management, maximum acoustic energy density, and steep mechanical amplitude delivery.
Beyond rigid polymers, handheld acoustic tools dominate synthetic textile edge-sealing and non-woven material joining. In technical fabric applications, ultrasonic horns cut and seal spunbond polypropylene or polyester fibers simultaneously, creating clean, sealed edges that prevent fraying without introducing stiff adhesive beads. Applications span spot welding automotive door panel insulation, attaching plastic clips to interior fascias, riveting structural bosses in electronics enclosures, and sealing non-woven filter bags.
Automotive Interior Assembly: Fastening acoustic insulation batts to door panels, instrument cluster riveting, and bumper sensor bracket spot attachment.
Medical & Protective Apparel: Spot tacking surgical gown ties, face mask ear-loop bonding, and high-efficiency particulate filter bag seam consolidation.
General Industrial Packaging: Fastening plastic corrugated container walls, attaching spouts to flexible pouches, and securing clamshell packaging corners.
Ergonomic handheld welding assemblies feature modular pistol-grip or straight-stick actuators, lightweight acoustic converters, and quick-change sonotrodes to optimize operator movement and minimize strain.
Handheld operations introduce human factors into production efficiency and quality control. The complete tool system includes the desktop acoustic generator, a flexible high-frequency interconnect cable, and an ergonomic handpiece housing the converter and horn assembly. To accommodate varied joint orientations, manufacturers utilize two primary handpiece form factors: pistol-grip guns and straight-handle tools. Pistol-grip handles feature a tactile trigger switch positioned for intuitive downward force application, making them ideal for horizontal workbenches and downward spot-welding operations. Straight-handle tools excel in vertical seam tracking, deep recessed cavities, or overhead line configurations supported by spring balancers.
Tool changeover efficiency and acoustic balance directly govern equipment uptime. Sonotrodes must be precision-machined from titanium alloys or hardened tool steel, tuned to match the exact resonant frequency of the generator. Quick-change threaded interfaces allow operators to swap welding tips in minutes. Selecting lightweight aluminum or magnesium actuator housings keeps handpiece weights under 1.0 kg, protecting assembly workers from repetitive strain injuries during continuous shifts.
To review versatile handpiece options and adaptive power output systems, inspect the technical data for the 2000B Series Handheld Welding Ultrasonic Generator.
Operating Tip: Always attach handheld ultrasonic guns to overhead spring balancers when working at stationary benches. Ensure the high-frequency coaxial cable maintains a bend radius greater than 150mm to prevent cable core fatigue and acoustic signal degradation.
A comprehensive technical specification profile enables industrial buyers to evaluate electrical input, acoustic power density, frequency tolerance, physical dimensions, and operational duty cycles across handheld ultrasonic welding platforms.
Evaluating technical specifications requires aligning machine parameters with specific material thickness and joint geometry. A high operating frequency of 35KHz paired with a 1200W dynamic power envelope delivers an optimal balance: it supplies high acoustic energy density without causing mechanical stress cracking in thin-wall resin components. Compact generator dimensions save critical bench space, enabling easy integration into mobile rework carts or multi-station benchtop layouts.
Key operational metrics include nominal resonant frequency (35KHz with ±0.5KHz auto-tracking), input mains voltage (220V AC ±10%), generator weight (3.2 kg to 4.5 kg), and stepless amplitude calibration (70% to 100%). Process parameters adapt directly to the application: plastic riveting typically requires 0.3–0.8 second weld durations at 85%–100% amplitude, while continuous non-woven sealing runs at speeds up to 15 meters per minute.
Precision Time Mode: Sets weld duration in 10-millisecond increments, ensuring consistent energy delivery for repeatable spot welds.
Phase-Locked Frequency Tracking: Continuously adjusts generator output to match transducer resonant shifts caused by frictional heating.
Automated Impedance Control: Monitors real-time electrical current draw, automatically adjusting voltage to maintain constant vibrational amplitude under load.
Built-in overload defense mechanisms, real-time impedance monitoring, and structured preventive horn maintenance protect internal components and extend equipment service life.
In high-speed manufacturing environments, equipment downtime can disrupt entire assembly lines. Industrial ultrasonic generators incorporate sophisticated protection circuits to guard against mechanical and electrical failures. Mold overload protection actively measures acoustic impedance between the generator, transducer, and horn. If an operator activates the unit against a metallic fixture, or if a welding horn develops a structural fatigue crack, the generator detects the sudden impedance spike and halts power output within microseconds. This immediate trip prevents catastrophic damage to the PZT ceramic transducer elements and internal switching transistors.
Complementing overload safeguards, voltage fluctuation defense circuits stabilize internal operating voltages across fluctuating industrial power grids. To complement these automated safeguards, engineering managers should implement strict preventive maintenance routines. Regularly inspecting horn contact faces, monitoring transducer insulation resistance, and verifying acoustic tuning ensures consistent long-term performance across multi-shift factory operations.
Preventive Maintenance & Tool Care Protocol:
Interface Torque Calibration: Tighten threaded horn-to-transducer joints using a calibrated torque wrench (25-30 Nm for M10 threads) to prevent acoustic energy loss and stud shearing.
Mating Surface Cleanliness: Clean titanium contact faces with isopropyl alcohol before mating. Never apply grease or anti-seize compounds to acoustic interface studs.
Frequency Sweep Verification: Perform weekly digital auto-tuning sweeps on the generator to detect early frequency drift, which may indicate horn wear or internal transducer cracking.
To review advanced digital protection systems and acoustic tracking technologies, examine the H20-B Series Handheld Welding Ultrasonic Generator.
Global procurement teams evaluating handheld ultrasonic welding equipment must weigh total cost of ownership, technical support scalability, regulatory compliance, and system modularity.
Procuring industrial ultrasonic equipment for international facilities requires evaluating long-term operational costs alongside initial purchase price. While basic manual systems may show a lower upfront cost, high-tier digital generators equipped with dynamic frequency tracking drastically lower long-term operating expenses by minimizing scrap rates, reducing operator error, and protecting tooling from premature failure.
Compared to adhesive or mechanical fastening—which incurs ongoing consumable costs, long cycle times (3 to 12 seconds), and hazardous solvent ventilation requirements—handheld ultrasonic welding operates with zero consumables, rapid weld times (0.3 to 1.2 seconds), and low environmental impact. This results in a significantly lower total cost of ownership over the equipment life cycle.
Power Grid Flexibility: Select generators capable of handling wide AC input ranges (220V ±10%) to account for regional industrial power fluctuations.
Spare Parts Standardization: Ensure transducers, boosters, and mounting studs utilize standard metric threads (e.g., M10x1.0 or M12x1.25) to simplify global replacement sourcing.
Multi-Language Support: Choose digital generators with clear, multi-language touchscreen interfaces to streamline training for global plant operators.
