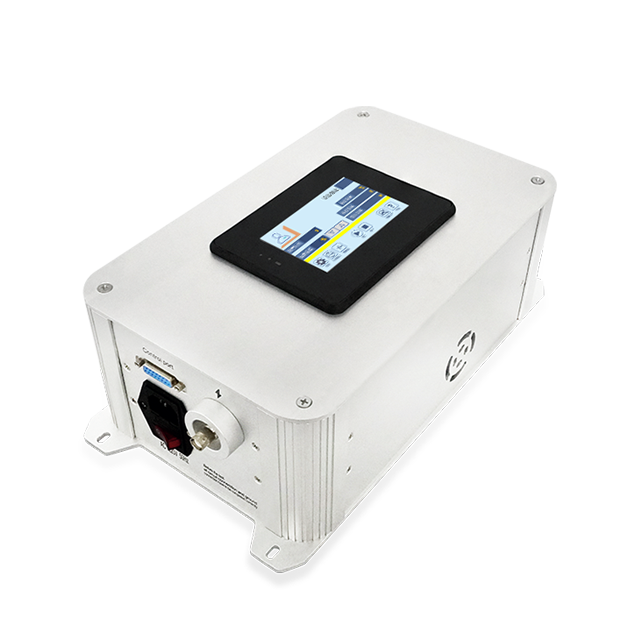

Engineered for precision ultrasonic atomization and spraying, the HF010 Series Ultrasonic Generator delivers stable low-power output for ultra-thin coating, fine liquid dispersion and automated production applications. With frequency options from 30KHz to 120KHz, up to 100W rated power, a 4.3-inch HD touchscreen and built-in RS485 communication, this ultrasonic spraying generator supports uniform coating quality, efficient material transfer and smooth integration into industrial coating lines.
Maximum output of 100W tailored for delicate, high-precision operations.
Supports a comprehensive frequency range from 30KHz to 120KHz.
Compact, robust design perfectly suited for automated production lines.
Exceptional material transfer efficiency exceeding 80%, minimizing waste.
Step into the future of precision manufacturing with the HF010 Series Ultrasonic Generator. Encased in a sleek, resilient stainless steel housing, this device exudes professional craftsmanship designed to withstand rigorous industrial environments. When powered on, the generator operates with a reassuringly quiet hum, translating electrical energy into high-frequency mechanical vibrations without the disruptive noise typical of conventional pneumatic systems. The tactile experience of the 4.3-inch high-definition touch screen is highly responsive, offering operators an intuitive interface that seamlessly switches between English and Chinese with a simple tap. Every curve and connection port on the silver-toned chassis is meticulously machined, reflecting an uncompromising dedication to quality.
The physical footprint is surprisingly compact, yet it houses formidable power capable of transforming complex liquid solutions into an ultra-fine, uniform mist. By eliminating the harsh pressure of traditional air sprays, it gently guides micro-droplets onto target substrates, ensuring a flawless, dense, and ultra-thin film. This meticulous delivery mechanism not only elevates the visual and functional quality of the final coating but also transforms the operational workflow, bringing unparalleled consistency and refinement to your production floor. Whether you are applying microscopic functional layers or handling sensitive reagents, this generator provides the absolute control required to achieve perfection in every single pass.

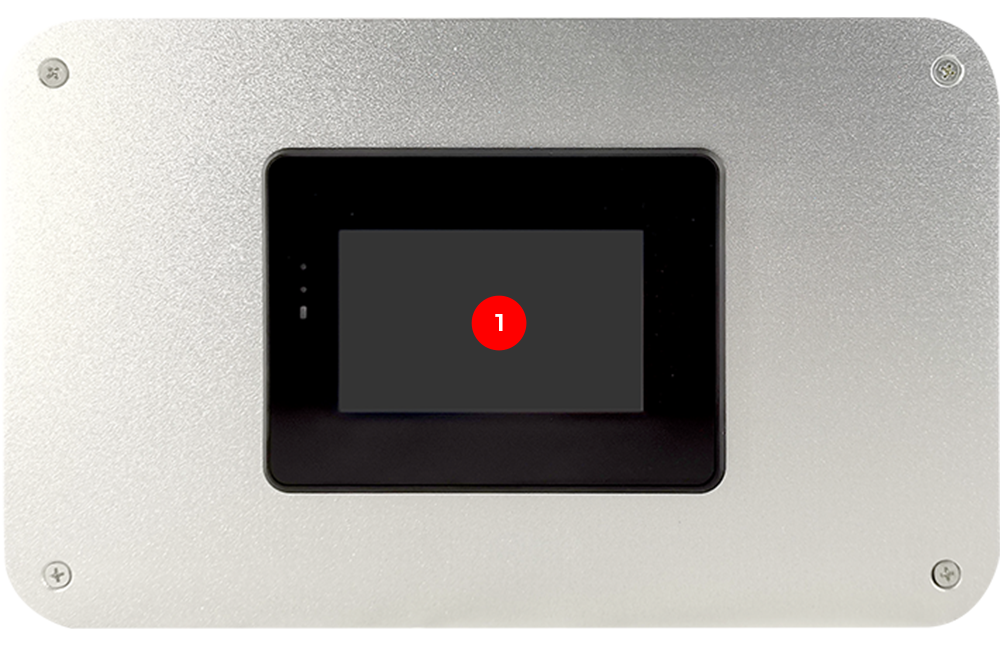

| Serial number | Name |
| 1 | touchscreen |

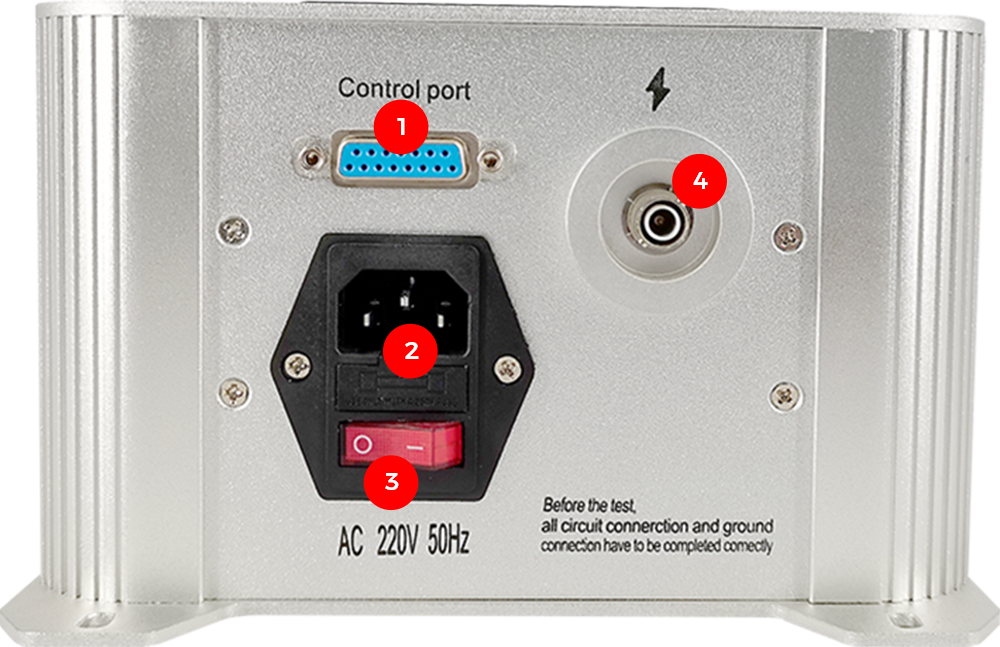

| Serial number | Name |
| 1 | DB15 connector |
| 2 | Pin-shaped power connector |
| 3 | Power switch |
| 4 | Transducer output BNC connector |
Frequency | Rated power | Type |
|---|---|---|
30KHz | 100W | Features built-in RS485 communication |
40KHz | 100W | |
60KHz | 80W | |
100KHz | 50W | |
120KHz | 30W |
External dimensions CM | 35*19.5*12.5 |
Weight kg | 3.7 |
Input voltage AC | 220V 50Hz |
Elevate your operational capabilities with a generator that redefines precision engineering. The HF010 Series is meticulously designed to provide operators with absolute control over the atomization process, ensuring that every drop of your valuable coating material is utilized effectively. The integration of intelligent software and robust hardware creates a synergy that boosts overall productivity.
Equal-Precision Lock Function: Experience an amplitude increase of approximately 30%, ensuring stable and continuous operation even under varying load conditions.
Interactive Touch Display: The vibrant 4.3-inch screen provides crystal-clear visibility of operational metrics, allowing for swift adjustments and real-time monitoring.
Bilingual Accessibility: Effortlessly toggle between English and Chinese interfaces, accommodating diverse operational teams and international facilities.
Superior Coating Quality: Achieve an ultra-thin, dense, and remarkably uniform coating layer that enhances the final product's performance and aesthetic appeal.
Exceptional Return on Investment: By drastically reducing material waste, the system lowers ongoing operational costs while maximizing the yield of premium-grade outputs.
At the heart of this system lies an advanced high-frequency ultrasonic vibration mechanism that shatters conventional coating limitations. Instead of relying on brute air pressure, the generator utilizes rapid mechanical oscillations to shear liquids into microscopic, evenly distributed droplets. This refined approach guarantees a level of precision that older methods simply cannot achieve.
Micron-Level Precision: Generate ultra-fine droplets that settle gently onto substrates, creating a flawless, pinhole-free film.
Highly Controllable Flow: Operators can precisely dictate the flow rate and coating thickness, down to the exact micron, ensuring strict adherence to quality standards.
Uniform Distribution: The ultrasonic waves ensure that particles within suspensions remain evenly dispersed, preventing clumping and uneven application.
Stress-Free Application: The low-velocity mist eliminates the physical stress and impact damage often caused by high-pressure pneumatic sprays on delicate components.
Managing material costs is a critical aspect of any large-scale production operation. The HF010 Series addresses this challenge head-on by fundamentally altering how liquids are transferred to the target surface. The pressureless, low-speed atomization process drastically minimizes overspray, bounce-back, and atmospheric dispersion.
Maximized Transfer Efficiency: Achieve a staggering 80% to 90% material utilization rate, a massive leap from the 30% to 50% typical of standard air sprayers.
Significant Cost Savings: By conserving expensive polymers, active pharmaceutical ingredients, and rare metal catalysts, the equipment quickly pays for itself.
Environmental Responsibility: Reduced overspray means fewer airborne contaminants, leading to a cleaner, safer workspace and lower costs associated with exhaust filtration.
Reduced Cleanup Time: With less wasted material accumulating on surrounding fixtures, maintenance crews spend significantly less time cleaning the production line.
Modern manufacturing demands equipment that can seamlessly integrate into existing automated ecosystems. The HF010 Series is engineered with connectivity and remote management in mind, making it an ideal component for sophisticated, continuous-duty production lines.
Standardized Communication: Built-in RS485 connectivity allows for straightforward integration with centralized PLCs and factory management systems.
Versatile Control Ports: The inclusion of a DB15 connector ensures robust and reliable signal transmission for automated triggering and parameter adjustments.
Plug-and-Play Architecture: The standard BNC transducer output and pin-shaped power connectors facilitate rapid setup, minimizing downtime during installation or maintenance.
Synchronized Operations: Easily coordinate the generator's activation with robotic arms or conveyor belts, ensuring perfectly timed applications in high-speed environments.
One of the most frustrating challenges in fluid application is dealing with nozzle blockages, especially when working with complex formulations. This ultrasonic generator is specifically designed to handle a diverse array of challenging fluids with ease, ensuring continuous, uninterrupted operation.
Broad Viscosity Range: Capable of effortlessly atomizing low to medium viscosity liquids up to 30cps, providing immense flexibility for various chemical formulations.
Suspension Handling: The continuous ultrasonic vibration naturally agitates the fluid, preventing fine particles in slurries and suspensions from settling and causing blockages.
Corrosion-Resistant Pathways: Crafted from high-strength titanium alloy, the atomizing components resist aggressive solvents and harsh chemical environments.
Low-Temperature Operation: Unlike thermal atomization, this cold process is perfect for heat-sensitive biological reagents or highly volatile solvents that would otherwise degrade.
Every product geometry presents unique coating challenges. To address this, the HF010 Series supports a comprehensive suite of specialized nozzles, each tailored to produce specific spray patterns and droplet sizes. This modularity ensures that you always have the right tool for the exact application required.
Frequency Options: Select from 30KHz to 120KHz; utilize lower frequencies for wide-area coverage with larger droplets, or higher frequencies for ultra-thin, precision micro-coatings.

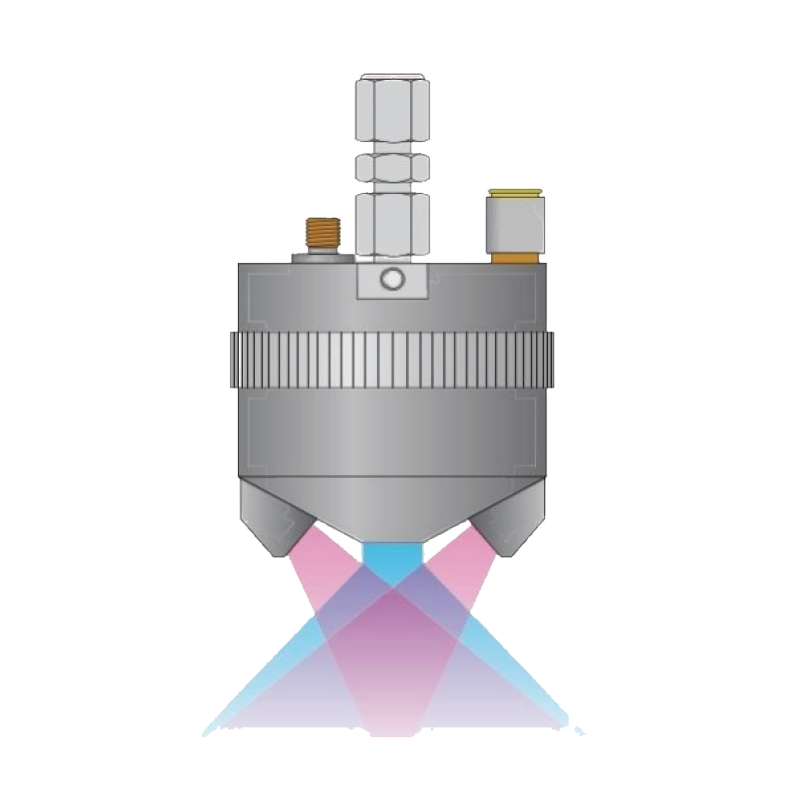

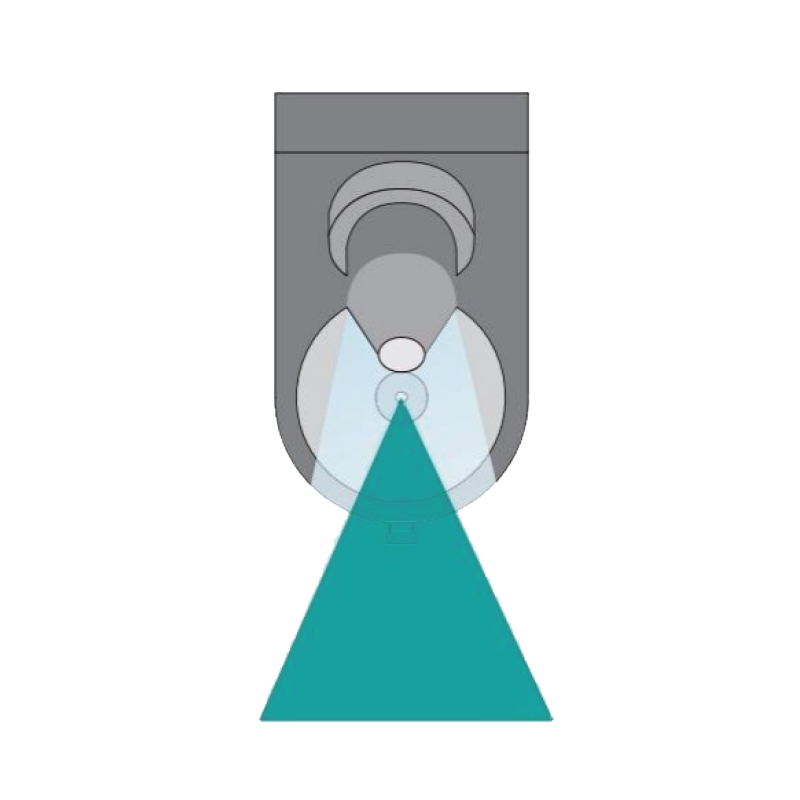

Wide-Mouth & Fan-Shaped Nozzles: Ideal for rapidly covering broad, flat substrates with a highly uniform layer of material.

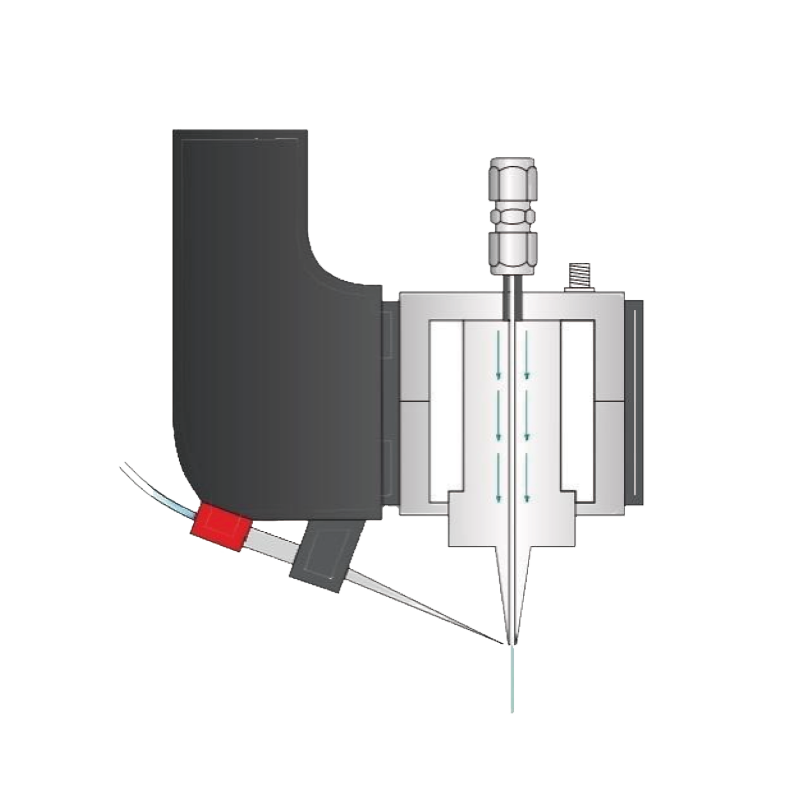

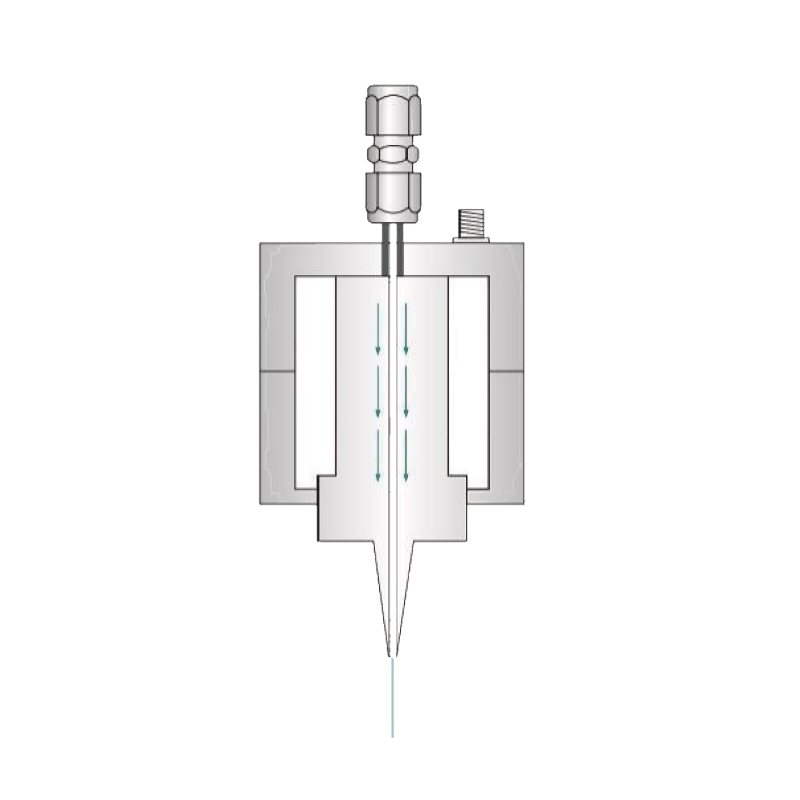

Micro-Cluster & Fine-Line Nozzles: Engineered for intricate work, allowing for targeted dispensing into narrow trenches, small cavities, or along precise linear paths.

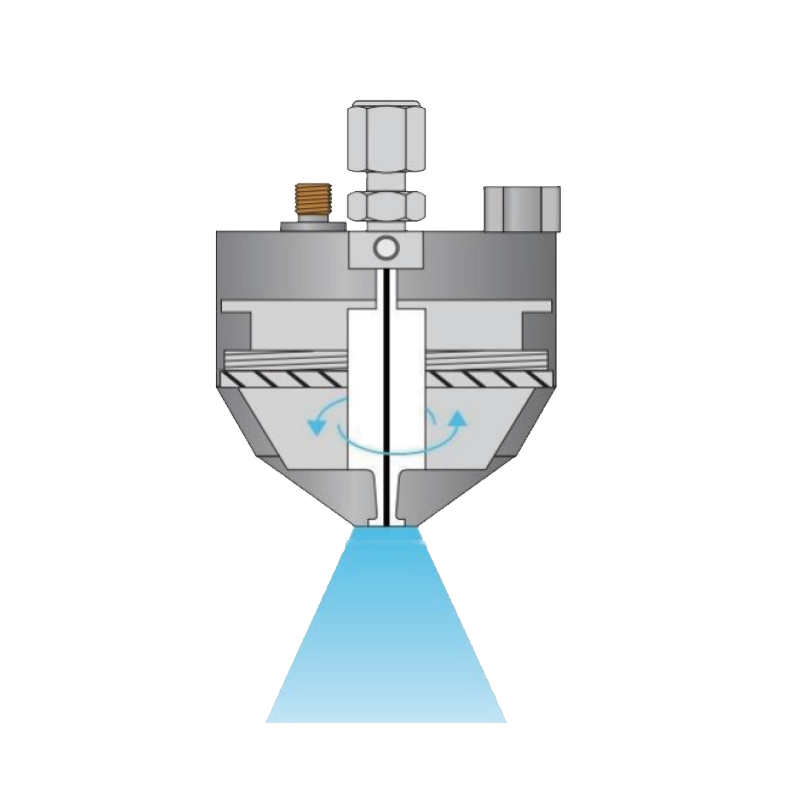

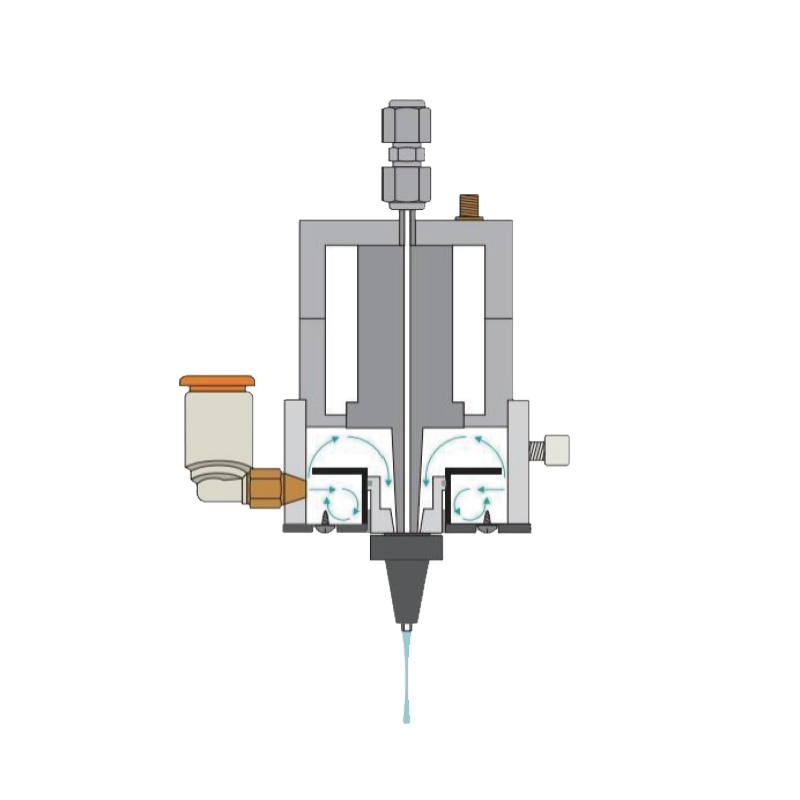

Concentrically Arranged & Pyrolysis Nozzles: Designed for specialized chemical depositions and complex fluid dynamics, ensuring optimal reaction environments during the spray process.
Partnering with a dedicated manufacturer means securing a reliable supply chain and gaining access to profound technical expertise. We are committed to empowering your production facility with equipment that exceeds industry standards for durability, performance, and innovation.
Uncompromising Quality Control: Every generator undergoes rigorous testing and calibration before leaving our facility, ensuring out-of-the-box reliability.
Direct Manufacturer Pricing: By eliminating intermediaries, we provide premium-grade industrial equipment at highly competitive rates, maximizing your procurement budget.
Expert Technical Support: Our team of seasoned engineers is always available to assist with integration, parameter optimization, and troubleshooting, ensuring your lines never stop.
Continuous Innovation: We heavily invest in research and development, constantly refining our ultrasonic technologies to keep you ahead of the technological curve.
Global Reach, Local Commitment: While we supply to an international market, we treat every client with personalized attention, offering flexible trade terms like EXW, FOB, and CIF to suit your logistical needs.
How much higher is the material utilization rate compared with traditional spraying?
The material utilization rate reaches an impressive 80% to 90%. This is significantly higher than traditional air spray methods, which typically only achieve 30% to 50%. This dramatic improvement effectively saves vast amounts of expensive coating materials and reduces waste management costs.
What specific liquids is this equipment suitable for spraying, and what are the viscosity limits?
How should I select the appropriate power and frequency for different workpieces?
Can this generator be integrated into a fully automated robotic production line?
What is included in the standard quotation, and does it cover shipping?
