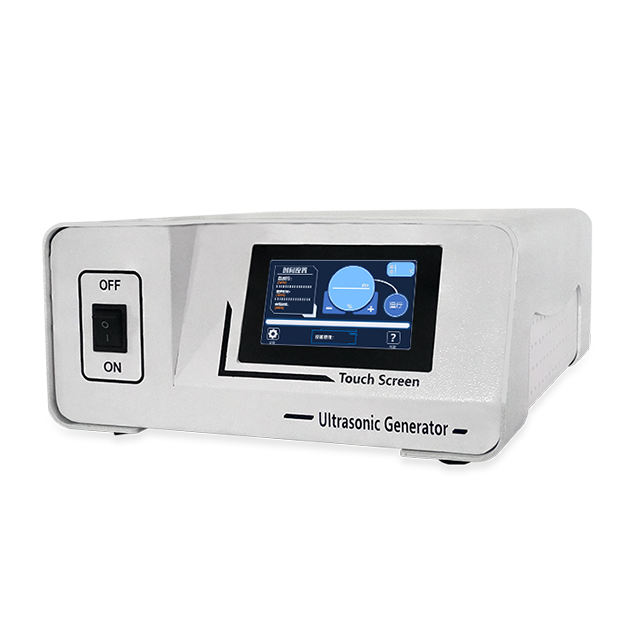

Designed for intensive sonochemistry and fluid processing applications, the WT320 Series High-Power Ultrasonic Generator delivers 3200W rated power at a stable 20KHz frequency for large-scale homogenization, extraction, dispersion and fluid treatment. With a 4.3-inch HD touchscreen, RS-485 communication and dual cooling fans, this high-power ultrasonic generator supports precise control, reliable operation and smooth integration into industrial processing systems.
Maximum power output of 3200W for intensive homogenization.
Stable 20KHz frequency ensuring consistent cavitation.
Direct supply from the manufacturer for optimal cost-efficiency.
Ideal for large-scale extraction, dispersion, and fluid treatment.
Step into the future of fluid processing with a high-power ultrasonic generator meticulously engineered for complex sonochemistry applications. When you power on the device, the subtle hum of the internal cooling systems immediately signals its robust industrial readiness, while the sleek, powder-coated metallic chassis offers a premium, tactile durability designed to withstand rigorous laboratory and factory environments. The crisp, responsive high-definition touch screen illuminates with crystal clarity, providing operators with immediate, intuitive control over complex acoustic parameters. This equipment is not merely a power source; it is a transformative catalyst for your entire production line.
By harnessing the intense physical forces of ultrasonic energy, it effortlessly tears through molecular bonds, turning stubborn, immiscible liquids into perfectly uniform emulsions. The resulting acoustic waves create microscopic bubbles that implode with immense localized heat and pressure, accelerating chemical reactions and significantly reducing processing times. Whether you are dealing with highly viscous organic compounds or seeking to extract delicate active ingredients without thermal degradation, this generator provides the precise acoustic energy required. It entirely eliminates the bottlenecks of traditional mechanical stirring, offering a sophisticated, high-yield solution that elevates the standard of your output while substantially lowering long-term operational expenditures.

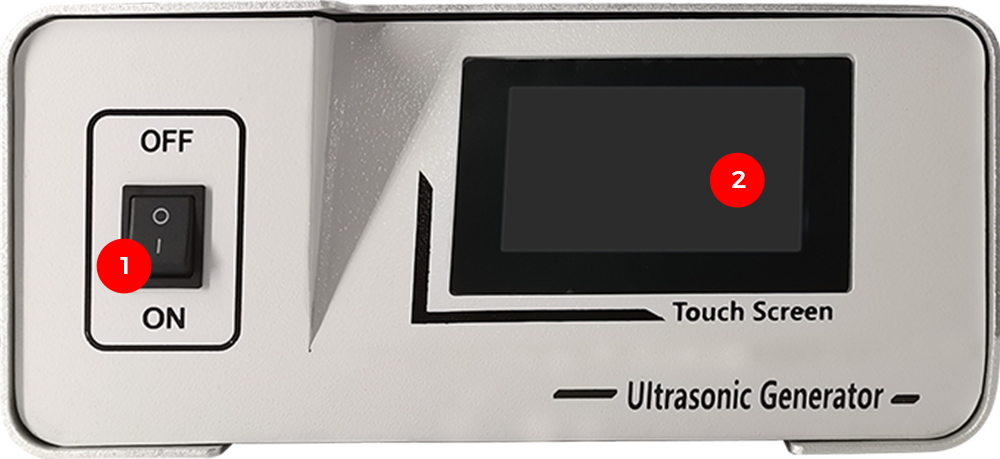

| Serial number | Name |
| 1 | Toggle switch |
| 2 | touchscreen |

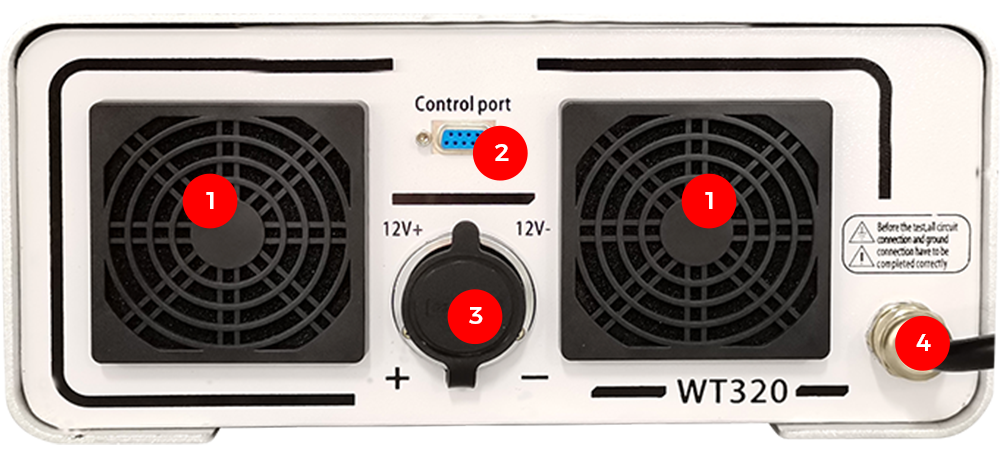

| Serial number | Name |
| 1 | Cooling fan |
| 2 | DB9 terminal 485 communication |
| 3 | #25 Aviation Connector |
| 4 | power cord |
Frequency | 20KHz |
Rated power | 3200W |
Matching capacitance | 20nf ±5% |
Type | Touchscreen control with RS-485 communication |
External dimensions CM | 40*31*15 |
Weight kg | 10.4 |
Input voltage AC | 220V 50Hz |
Achieving superior results in sonochemistry requires equipment that goes beyond basic functionality. This ultrasonic generator is packed with advanced engineering features designed to streamline your workflow, protect your materials, and ensure absolute consistency across every batch. By focusing on precision control and robust energy delivery, it empowers operators to tackle the most challenging dispersion and extraction tasks with absolute confidence.
Equal-Precision Lock Function: Maintains absolute frequency stability, ensuring that the acoustic wave delivery remains consistent even as fluid viscosity or temperature changes during processing.
Enhanced Amplitude Delivery: Engineered to increase amplitude by approximately 30%, driving deeper cavitation and more aggressive homogenization for stubborn, high-density mixtures.
Rapid Reaction Acceleration: Drastically improves reaction efficiency, speed, and overall productivity, allowing facilities to process larger volumes in a fraction of the time.
Intuitive Interface Navigation: The highly responsive touchscreen eliminates the learning curve, allowing technicians to adjust parameters instantly with a simple tap.
Adaptable Language Settings: Built-in bilingual support ensures smooth operation for diverse, international engineering teams and global production facilities.
When dealing with high-stakes chemical processing, raw power and unyielding stability are non-negotiable. This generator delivers a formidable 3200W of rated power at a steady 20KHz frequency, creating an acoustic environment where intense cavitation thrives. This immense energy output translates directly into tangible operational improvements, transforming sluggish traditional processes into rapid, high-yield operations.
Massive Power Output: The 3200W capacity effortlessly handles high-viscosity fluids and dense solid-liquid suspensions without stalling or overheating the transducer.
30% Amplitude Boost: A significantly enhanced amplitude profile ensures that the ultrasonic waves penetrate deeper into the medium, maximizing the active cavitation zone.
Exponential Efficiency Gains: By leveraging acoustic cavitation, the efficiency of reactions, extractions, and dispersions is multiplied by 2 to 10 times compared to conventional mechanical agitation.
Shorter Processing Cycles: Rapid molecular breakdown means your batches are completed faster, directly increasing your daily throughput and facility capacity.
Modern industrial environments demand equipment that communicates seamlessly with existing centralized systems. This unit bridges the gap between raw acoustic power and intelligent automation. The tactile feedback of the high-definition touch screen provides a satisfying, modern user experience, while the underlying architecture is fully prepped for sophisticated factory integration.
High-Definition Touch Interface: The bright, responsive 4.3-inch screen offers clear visibility of all critical parameters, allowing for precise, on-the-fly adjustments with a simple touch.
Seamless PLC Integration: Equipped with an RS-485 communication interface via a secure DB9 terminal, enabling flawless integration into centralized automated control systems.
Customizable Device Addressing: Easily assign specific communication addresses to multiple units, allowing a single master controller to manage an entire array of generators simultaneously.
Bilingual Accessibility: One-touch switching between English and Chinese ensures that operators across different regions can interact with the equipment without language barriers.
We understand that a successful process must transition smoothly from the laboratory bench to the factory floor. This equipment ecosystem is designed with absolute scalability in mind, ensuring that the parameters you perfect in testing can be replicated flawlessly at a massive scale. Furthermore, the system architecture allows for deep customization to match your specific infrastructural constraints.
Comprehensive Power Matrix: We offer tailored solutions ranging from laboratory testing (300W–1000W) to pilot scale (500W–2000W) and full industrial mass production (2000W–5000W and above).
Volume-Specific Tuning: Acoustic parameters can be deeply customized based on your specific tank volume, ensuring uniform cavitation density regardless of vessel size.
Material-Driven Adaptations: The generator's output characteristics can be modified to perfectly match the acoustic impedance and viscosity of your unique material formulations.
Process-Specific Engineering: Whether your process requires continuous flow-through treatment or batch processing, the system can be configured to integrate flawlessly.
Investing in advanced sonochemistry technology is a strategic financial decision that yields immediate and compounding returns. By fundamentally altering the kinetics of your chemical and physical processes, this generator slashes the consumption of expensive consumables while simultaneously boosting your overall production yield. The financial impact is measurable, rapid, and sustained.
Reduced Chemical Consumption: The intense localized energy of acoustic cavitation significantly lowers the activation energy required for reactions, drastically reducing the need for expensive catalysts and chemical solvents.
Lower Energy Expenditure: By shortening processing times by up to 90%, the overall electrical consumption per batch is dramatically reduced compared to prolonged mechanical heating and stirring.
Flexible Procurement Models: For equipment integrators, we offer a PCB-only procurement option without the exterior housing, significantly cutting down bulk acquisition costs and facilitating custom OEM builds.
Minimized Maintenance Costs: The solid-state design and lack of moving parts within the generator itself result in fewer mechanical failures and reduced downtime, protecting your bottom line.
Industrial environments are unforgiving, and equipment failure is not an option. This generator is housed in a rugged, precisely engineered chassis that prioritizes thermal management and electrical safety. Every component, from the heavy-duty connectors to the internal circuitry, has been selected to endure continuous, high-load operation without faltering.
Advanced Thermal Management: The rear panel is equipped with a robust dual cooling fan system, ensuring rapid heat dissipation and maintaining optimal internal temperatures even during continuous 3200W operation.
Industrial-Grade Connectivity: Features a heavy-duty #25 aviation connector, providing a secure, vibration-proof, and moisture-resistant electrical link between the generator and the transducer.
Auxiliary Power Access: A convenient 12V socket is integrated directly into the back panel, allowing for the easy powering of supplementary sensors or small auxiliary equipment.
Durable Chassis Construction: The robust external housing measures 40 x 31 x 15 cm and weighs a solid 10.4 kg, providing a stable, grounded presence on any industrial rack or workbench.
Selecting the right partner for your sonochemistry equipment is just as critical as the technology itself. As a dedicated manufacturer and supplier with deep expertise in ultrasonic applications, we provide more than just machinery; we deliver comprehensive processing solutions. Our commitment to quality engineering and customer success ensures that your facility operates at peak performance.
Direct Manufacturer Advantage: By sourcing directly from the factory, you eliminate middleman markups, ensuring premium industrial equipment at highly competitive volume pricing.
Rigorous Quality Assurance: Every generator undergoes extensive full-load testing and thermal cycling before leaving our facility, guaranteeing out-of-the-box reliability for your critical processes.
Expert Technical Support: Our team of seasoned acoustic engineers provides comprehensive guidance, from initial parameter selection to on-site integration and troubleshooting.
Rapid Global Fulfillment: We maintain robust production capabilities and streamlined logistics, ensuring that your large-scale orders are manufactured and delivered precisely on schedule.
OEM & Customization Capabilities: We possess the in-house engineering agility to modify housing, software interfaces, and internal components to perfectly align with your proprietary system designs.
What power rating is suitable for various sonochemistry applications?
The required power scales with your production volume. For laboratory testing and formulation, 300W to 1000W is typically sufficient. Pilot-scale tests generally require 500W to 2000W. For full industrial mass production, we recommend units ranging from 2000W to 5000W and above. We also provide custom parameter configurations based on your specific material viscosity, tank volume, and processing goals.
How much efficiency can ultrasonic sonochemistry improve compared with traditional processes?
Is it acceptable to omit the external housing for integration purposes?
How does the RS-485 communication interface benefit my production line?
What maintenance is required for the dual cooling fan system?
Can the touchscreen interface be operated while wearing protective laboratory gloves?
