| Quantity: | |
|---|---|
Sourced directly from an industry-leading manufacturer, the H20-E Series Ultrasonic Generator for Food Cutting delivers high-power performance up to 2600W. As a reliable supplier, we engineered this advanced unit for seamless integration into high-volume processing lines, ensuring unparalleled precision and efficiency.
Maximum power output of 2600W for demanding, continuous tasks.
Proprietary Traceability system for strict quality and parameter control.
Versatile processing capabilities for baked goods, confectionery, and dairy.
Compact, robust design featuring a 4.3-inch high-definition touchscreen.
The H20-E Series Ultrasonic Generator for Food Cutting represents a paradigm shift in industrial food processing. When integrated into your production line, this high-power ultrasonic generator emits silent, high-frequency micro-vibrations that slice through the most delicate or dense culinary creations with absolute zero friction. Imagine the smooth glide of a blade through a freshly baked pumpkin roll or a dense, sticky nougat bar, leaving behind a pristine, unsmudged surface without any crumb displacement or structural collapse. The tactile feedback of the 4.3-inch high-definition touchscreen allows operators to interact seamlessly with the machine, dialing in exact parameters for varying textures and densities. Crafted with a robust aluminum alloy and stainless steel casing, the unit feels substantial and durable, engineered to withstand the rigorous demands of continuous daily operation in humid or demanding environments. By eliminating the mechanical pressure traditionally required for slicing, this ultrasonic power supply ensures that every cut is razor-sharp, maintaining the exact visual appeal and textural integrity of premium food products. It is widely used for label cutting, food cutting, plastic welding, plastic riveting, non-woven fabric welding, slitting, and other intricate processes where precision is non-negotiable.

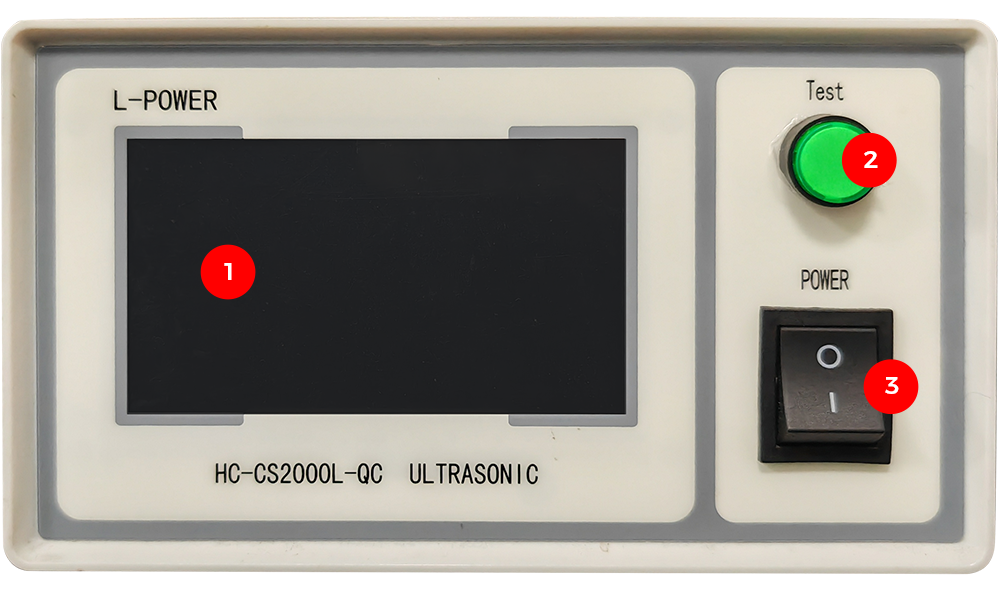

| Serial number | Name |
| 1 | touchscreen |
| 2 | Test |
| 3 | Toggle switch |

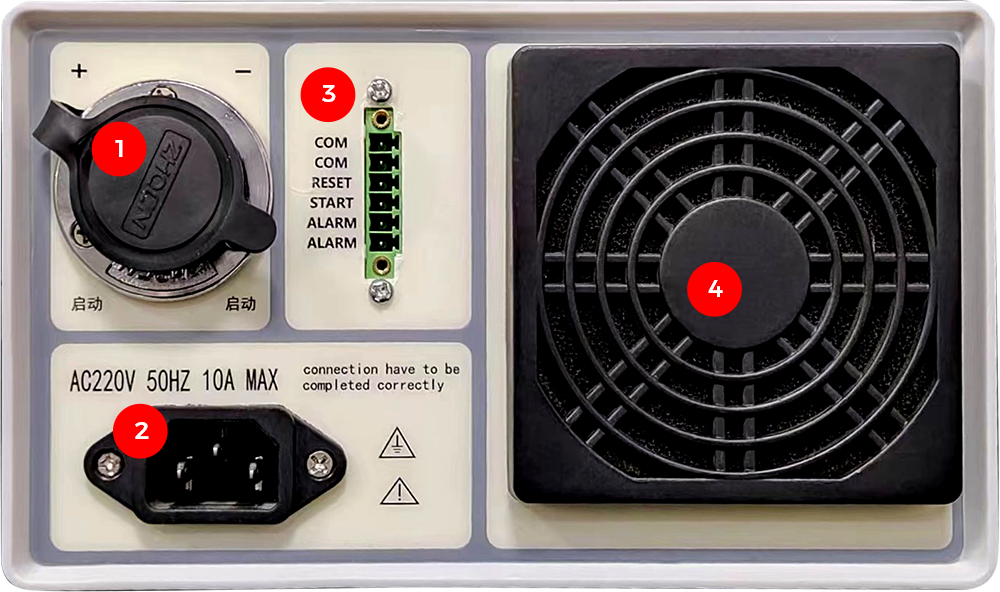

| Serial number | Name |
| 1 | #25 Aviation Connector |
| 2 | Pin-shaped power connector |
| 3 | Through-wall terminal |
| 4 | Cooling fan |
Our ultrasonic generator is meticulously engineered with precise specifications to meet rigorous production demands. The following tables outline the exact technical parameters, frequency options, and physical dimensions of the H20-E Series.
Frequency | Power | Type |
|---|---|---|
20KHz | 2600W | Utilising our proprietary ‘Traceability’ system; One digital output channel; Two digital input channels; |
28KHz | 1800W | |
30KHz | 1500W | |
35KHz | 1200W | |
40KHz | 800W |
External dimensions CM | Weight kg | Input voltage AC |
|---|---|---|
36.5*19*12 | 3.7 | 220V 50Hz |
Designed to elevate your processing capabilities, this ultrasonic power supply integrates cutting-edge technology to solve common production bottlenecks. Every feature is meticulously crafted to ensure maximum uptime and flawless output.
Mold Overload Protection: Equipped with advanced mold overload protection to safeguard the entire system and molds from unexpected power surges or operational stress.
Zero-Deformation Slicing: Delivers exceptionally low cutting pressure, ensuring absolutely no collapse on soft, delicate foods like mousses and cream-filled pastries.
Anti-Sticking Technology: Blade anti-sticking properties allow for smooth, continuous cutting, resulting in significantly less frequent cleaning downtime.
Thermal-Neutral Operation: Low-temperature cutting guarantees no temperature rise, preventing food deformation or melting in temperature-sensitive goods.
Intuitive Interface: Features a highly responsive 4.3-inch high-definition touch screen for instant parameter adjustments and real-time monitoring.
Achieving visual perfection in culinary presentation is paramount for premium brands. The H20-E Series masters the art of damage-free portioning through its ultra-low cutting pressure and low-temperature operation, ensuring your products look as good as they taste.
Maintains the structural integrity of soft, airy desserts, ensuring they never collapse or lose their volume during the slicing phase.
Creates impeccably smooth and flat cut surfaces, enhancing the aesthetic appeal of multi-layered products and intricate pastries.
Prevents the melting or smearing of temperature-sensitive ingredients, such as premium chocolate coatings or delicate dairy creams.
Drastically reduces material waste and defect rates, directly improving your overall production yield and profit margins.
Modern production facilities demand equipment that communicates seamlessly within an automated ecosystem. This generator is engineered specifically for high-speed, synchronized assembly lines, removing the friction from facility upgrades.
Features a proprietary Traceability system that logs operational data, ensuring consistent quality control across large batches.
Equipped with one digital output channel and two digital input channels for instant communication with central processing units.
Utilizes industrial-grade #25 aviation connectors and through-wall terminals to guarantee stable, interference-free signal transmission.
Supports centralized control of multiple units, allowing facility managers to scale up operations without multiplying labor requirements.
Maintaining strict sanitary conditions is a non-negotiable standard in the food industry. This ultrasonic technology inherently supports a cleaner, safer processing environment by minimizing physical contact and residue buildup.
The high-frequency micro-vibrations create a frictionless surface, repelling sticky ingredients and preventing cross-contamination between batches.
Eliminates the need for any chemical lubricants or food-grade oils on the blade, preserving the pure taste and aroma of your ingredients.
Reduces the frequency of mandatory cleaning stops, keeping the line moving while adhering to the strictest global health standards.
The sleek aluminum alloy and stainless steel exterior wipes down effortlessly, preventing bacterial harbor points and ensuring rapid sanitation.
Continuous, high-volume production requires equipment that will not falter under pressure. The H20-E Series is fortified with internal safeguards to ensure relentless reliability during peak operational hours.
An intelligent mold overload protection system instantly detects anomalies, cutting power before any damage can occur to the transducer or the blade.
A heavy-duty, built-in cooling fan actively dissipates heat from the internal circuitry, maintaining optimal operating temperatures during 24/7 shifts.
The robust internal architecture minimizes wear and tear on electronic components, significantly extending the lifecycle of the entire unit.
Lowers the total cost of ownership by reducing the frequency of maintenance interventions and unexpected mechanical failures.
Complex technology should not require a steep learning curve. We designed the interface of this generator to be as intuitive as a modern smartphone, empowering operators of all skill levels to achieve perfect results.
The vibrant 4.3-inch touchscreen displays critical data clearly, allowing for rapid parameter switching between different product runs.
Offers highly granular amplitude adjustment ranging from 1% to 100%, giving you the exact vibrational force needed for varying densities.
A dedicated green 'Test' button and sturdy toggle switch provide immediate tactile control for quick diagnostics and system checks.
Simplifies the onboarding process for new floor staff, reducing training expenses and minimizing the risk of human error during setup.
Procuring industrial equipment is a significant financial commitment. We back our technology with comprehensive support structures designed to give procurement teams complete peace of mind from the moment of inquiry to years down the line.
Standardized EXW delivery terms with the flexibility to negotiate alternative shipping arrangements tailored to your logistical needs.
Clear and secure payment protocols requiring full payment prior to shipment, ensuring a transparent and predictable transaction process.
Backed by a solid 1-year warranty, protecting your investment against manufacturing defects and operational anomalies.
Access to professional online technical support, ensuring that any integration questions or troubleshooting needs are resolved swiftly.
Selecting the right manufacturing partner is just as critical as choosing the right equipment. As a dedicated supplier of advanced ultrasonic solutions, we are committed to elevating your operational efficiency through relentless innovation and uncompromising quality control.
Proven Manufacturing Excellence: We leverage years of specialized experience in ultrasonic technology to deliver generators that consistently outperform conventional cutting methods.
Strict Quality Assurance: Every unit undergoes rigorous stress testing before leaving our facility, ensuring it meets the highest industrial standards for durability and safety.
Tailored Industry Solutions: We understand that no two production lines are identical. Our equipment is designed with modularity and adaptability in mind to fit your specific spatial and technical requirements.
Global Reach, Local Support: While we manufacture at scale, we maintain a customer-centric approach, providing responsive support and clear communication to partners worldwide.
What kinds of food are suitable for this ultrasonic generator?
This highly versatile system is suitable for cakes, bread, chocolate, cheese, candies, frozen food, cooked meat, jelly, and other soft, sticky, or frozen ingredients. The adjustable amplitude ensures it can handle varying densities with ease.
Will soft cakes and mousse collapse or deform after cutting?
How does the mold overload protection system work?
Can this equipment be integrated into an existing automated processing line?
What are your payment terms and shipping arrangements?
Does the equipment require frequent maintenance or blade lubrication?
