Designed for flexible handheld ultrasonic cutting, the 2000B Series Handheld Cutting Ultrasonic Generator provides stable high-frequency output for clean, efficient material processing in industrial production lines. With 28KHz to 40KHz frequency options, 600W to 1200W power configurations, and pistol grip or straight handle designs, this handheld ultrasonic cutting generator supports precise cutting of plastics, textiles, leather, non-woven fabrics and other soft to semi-rigid materials.
Available power configurations from 600W to 1200W for different processing needs.
Multiple frequency options from 28KHz to 40KHz to suit diverse materials.
Pistol grip and straight handle designs support flexible handheld operation.
Recommended for plastics, textiles, leather, non-woven fabrics and similar materials.
Step into a new era of manufacturing precision with the 2000B Series Handheld Cutting Ultrasonic Generator. When you power on this device, the subtle, steady hum of the built-in cooling fan immediately communicates industrial-grade reliability. The sleek, metallic chassis feels robust and cool to the touch, specifically designed to withstand the rigorous, non-stop demands of a busy production floor. By utilizing high-frequency micro-vibrations, this generator transforms standard, labor-intensive cutting tasks into a seamless, low-resistance experience. Operators will instantly notice the distinct lack of physical strain; the tool glides through dense plastics, thick leathers, and delicate fabrics with the smoothness of a hot knife through butter, leaving behind a clean, perfectly sealed edge that requires absolutely zero secondary polishing.
Beyond its tactile and auditory assurances, this generator is a problem-solving powerhouse for modern assembly lines. Traditional mechanical cutting methods frequently result in frayed edges, material deformation, or damaged precision parts due to excessive downward blade pressure. This ultrasonic system eliminates those bottlenecks entirely. The cold-cutting technology ensures that soft, elastic, and sticky materials maintain their exact structural integrity without melting, warping, or adhering to the tool. Whether you are outfitting a high-volume textile workshop or upgrading an automotive interior assembly station, integrating this generator means drastically reducing material waste, speeding up cycle times, and elevating the final presentation and quality of your manufactured goods.

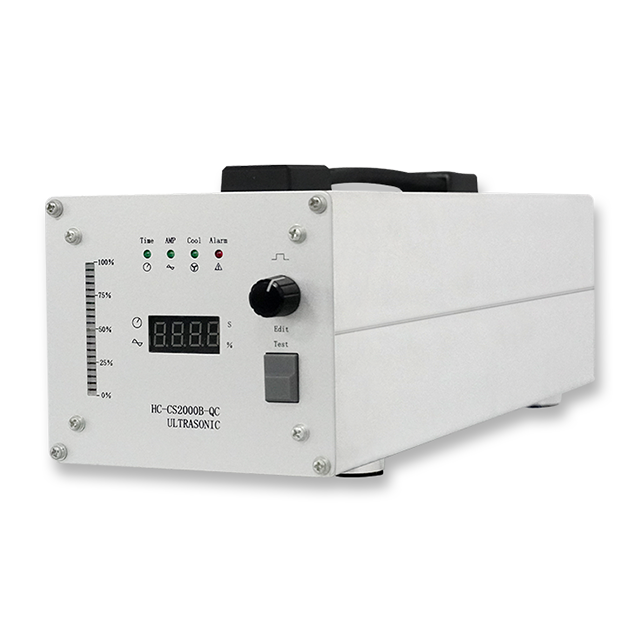

| 1 | Barcode light |
| 2 | LED light |
| 3 | Digital tube display |
| 4 | Rotary encoder switch |
| 5 | Test |
| 1 | Cooling fan |
| 2 | Start-up and transducer output |
| 3 | Cooling Solenoid Valve Control |
| 4 | Power switch |
| 5 | Pin-shaped power connector |
Engineered to meet exact industrial standards, the following table details the core technical parameters of the 2000B Series. These specifications ensure optimal compatibility with your existing production infrastructure and material requirements.
Frequency | Power | Capacitance | Handle type |
|---|---|---|---|
28KHz | 1200W | 6.5nf~9.5nf | Pistol grip |
Straight handle | |||
30KHz | 1000W | 6.5nf~9nf | Pistol grip |
Straight handle | |||
35KHz | 800W | 7nf~9nf | Pistol grip |
Straight handle | |||
40KHz | 600W | 5nf~7nf | Pistol grip |
Straight handle |
External dimensions CM | Weight kg | Input voltage AC |
|---|---|---|
39.5*12*11 | 3.2 | 220V 50Hz |
Maximizing operational efficiency requires equipment that is both intelligent and forgiving. The 2000B Series is packed with features designed to streamline your workflow, protect your materials, and empower your workforce.
Intuitive Digital Interface: The front panel boasts a crisp digital tube display and a highly responsive rotary encoder switch. Operators can dial in exact parameters with a satisfying tactile click, ensuring repeatable accuracy across different material batches.
Flawless Edge Sealing: When processing textiles and non-woven fabrics, the ultrasonic friction simultaneously cuts and seals the edge. This completely prevents fraying and eliminates the need for costly additional hemming or finishing steps.
Zero-Distortion Processing: Operating at low temperatures, the ultrasonic blade prevents soft, elastic, or sticky materials from deforming or adhering to the tool. Your products retain their exact designed shape from start to finish.
Minimal Downward Pressure: The high-frequency vibration does the heavy lifting. Operators need to apply minimal physical force, which actively protects thin-walled and highly delicate precision parts from crushing or micro-fractures.
Comprehensive Safety Protocols: Built-in multiple safety protections monitor the system continually. If anomalies occur, the intuitive alarm indicators immediately alert the operator, preventing equipment damage and ensuring workplace safety.
The true value of the 2000B Series lies in its multifaceted adaptability. It is engineered not just as a standalone tool, but as a comprehensive solution for diverse manufacturing challenges across multiple sectors.
Achieve flawlessly smooth, burr-free cuts that completely bypass the need for secondary grinding or polishing. For fabrics and non-wovens, the cut-and-seal capability permanently resolves the issue of loose threads. The low-temperature operation ensures that even the most temperature-sensitive soft materials remain perfectly intact without sticking to the blade.
This generator is a highly versatile asset, perfectly suited for processing plastics, soft rubber, silicone, leather, non-woven fabrics, food items, and semi-rigid films. It seamlessly aligns with the rigorous production demands of automotive interiors, textile manufacturing, food processing, and specialized model handicrafts.
The user experience is prioritized through an intuitive front control panel featuring a clear digital display, a rotary encoder, and a dedicated test button. The learning curve is exceptionally low. Furthermore, the availability of both pistol grip and straight handle configurations drastically reduces operator fatigue during long, high-volume production shifts.
Thermal stability is guaranteed by a heavy-duty rear cooling fan and a dedicated cooling solenoid valve control interface. Combined with internal multi-layer safety protections, the system maintains peak performance during continuous, high-intensity operations, ensuring a remarkably low failure rate and minimizing costly facility downtime.
By utilizing ultrasonic high-frequency micro-vibrations, the physical pressure required to make a cut is reduced to near zero. This completely eradicates the physical crushing, tearing, and stress fractures commonly caused by traditional mechanical blades, leading to a dramatic increase in your overall production yield rate.
Future-proof your procurement investment. The rear panel is equipped with standard multi-pin start-up and transducer output connectors. While it excels in flexible, handheld operations today, it provides the exact hardware foundation required to seamlessly integrate the ultrasonic system into fully automated production lines or specialized robotic machinery tomorrow.
Selecting the right equipment supplier is a critical strategic decision for your facility. We focus on delivering not just machinery, but long-term reliability and scalable solutions tailored to your operational goals.
Direct Manufacturer Advantage: By sourcing directly from the factory, you ensure highly competitive pricing and transparent communication without ever compromising on industrial-grade quality.
Stringent Quality Control: Every ultrasonic generator undergoes rigorous testing and calibration before leaving our facility. We guarantee that the unit you receive is ready to perform under the most demanding continuous-use scenarios.
Customized Flexibility: We understand that no two production lines are identical. By offering multiple frequency options (28KHz to 40KHz) and distinct handle ergonomics, we provide solutions that fit your exact material and workforce requirements.
Dedicated Technical Support: From initial setup queries to long-term maintenance advice, our team of engineering experts is readily available to ensure your equipment operates at peak efficiency, minimizing any potential disruption to your output.
What specific materials are compatible with this ultrasonic cutting system?
The system is highly versatile and engineered for soft to semi-rigid materials. It excels at cutting plastics, soft rubber, silicone, leather, non-woven fabrics, heavy cloth, acoustic foam, food products, and various packaging films.
How does the equipment maintain stability during extended production shifts?
Can this generator be used to weld different types of plastics together?
Is it possible to integrate this handheld unit into an automated robotic cell in the future?
How do the different handle options benefit the assembly line workers?
