As a leading manufacturer and supplier of industrial assembly solutions, we present the 2000BL Series Handheld Welding Ultrasonic Generator. Designed for high-frequency precision, this compact unit delivers reliable spot welding, riveting, and edge sealing for diverse materials.
Rated power up to 1200W for robust applications.
Available in ergonomic pistol grip and straight handle configurations.
Ideal for thermoplastic, non-woven fabric, and chemical fiber cloth processing.
Engineered for continuous, high-efficiency production lines.
The 2000BL Series Handheld Welding Ultrasonic Generator represents a paradigm shift in portable assembly equipment. Encased in a sleek, industrial-grade silver chassis, this device emits a quiet, consistent hum that signifies its immense high-frequency power. When activated, the ultrasonic vibrations transfer seamlessly through the customized welding horn, instantly melting and fusing materials at the molecular level without the acrid smell, toxic fumes, or messy residue of traditional chemical adhesives. Operators will immediately notice the ergonomic balance of the handle—whether opting for the pistol grip or the straight handle—which significantly reduces wrist fatigue and mechanical strain during extended operational shifts.
The front panel features a crisp LED display screen and a tactile rotary encoder switch that provides satisfying, precise clicks when adjusting parameters. This tactile feedback ensures that operators can maintain strict control over the ultrasonic output without constantly looking away from their workstation. By eliminating the need for external consumables like glues, threads, or metal fasteners, this generator not only streamlines the assembly process but also creates a cleaner, more sustainable production environment. The instantaneous formation of solid, high-strength welds means your production line moves faster, dramatically reducing cycle times per unit and elevating your overall output capacity to meet demanding market schedules.

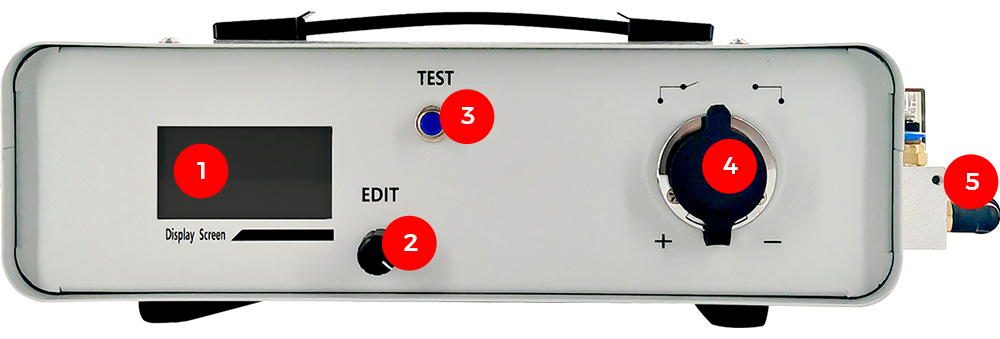

| Serial Number | Name |
| 1 | LED display screen |
| 2 | Rotary encoder switch |
| 3 | Test |
| 4 | #25 Aviation Connector |
| 5 | Solenoid valve |

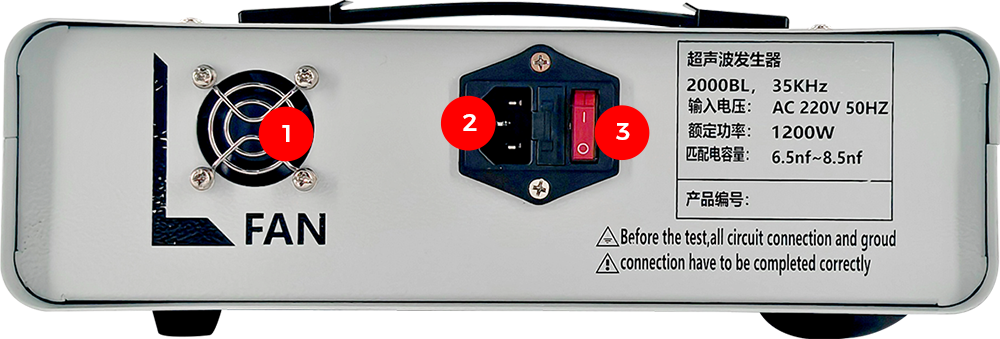

| Serial Number | Name |
| 1 | Cooling fan |
| 2 | Pin-shaped power connector |
| 3 | Power switch |
Understanding the precise technical capabilities of your equipment is crucial for maintaining optimal production standards. The following table outlines the exact specifications of the 2000BL Series Handheld Welding Ultrasonic Generator, detailing its versatile frequency options, power outputs, and physical dimensions. These parameters are meticulously engineered to provide maximum flexibility across various industrial applications, ensuring that facility managers and procurement specialists can match the exact configuration to their specific assembly line requirements. Whether you are scaling up a new production facility or upgrading legacy machinery, these verified specifications guarantee that the equipment will integrate seamlessly into your existing electrical infrastructure and spatial constraints, delivering consistent, high-yield performance day in and day out.
Product Name | 2000BL Series Handheld Welding Ultrasonic Generator |
|---|---|
Frequency & Power | 28KHz (1200W) / 30KHz (1000W) / 35KHz (800W) / 40KHz (600W) |
Input Voltage | AC 220V 50/60Hz |
External Dimensions | 36*21*10 cm |
Weight | 3.48 kg |
Handle Type | Pistol grip / Straight handle |
Welding Time | 0-10 seconds (continuously adjustable) |
Welding Head Size | 3-15mm (customization supported) |
Warranty | 1 Year |
Equipping your assembly floor with the 2000BL Series means investing in reliability, precision, and operator comfort. Every internal component and external interface is meticulously designed to enhance the daily workflow, minimizing unexpected downtime and maximizing output quality. The intuitive interface and robust internal architecture work in tandem to deliver flawless results across a multitude of materials, ensuring your operations remain agile and competitive.
Digital Display and Intuitive Operation: The clear LED screen and responsive button layout allow for rapid parameter adjustments, ensuring operators can switch between different material tasks with minimal delay.
Multiple Ultrasonic Welding Modes: Adapt effortlessly to different material thicknesses and structural compositions, providing unparalleled versatility for complex, multi-stage assembly projects.
Compact Footprint with High Power: Despite its space-saving dimensions, the unit delivers up to 1200W of raw welding power, easily handling demanding industrial applications without monopolizing workbench space.
Advanced Thermal Management: The rear-mounted cooling fan actively dissipates heat during continuous operation, safeguarding internal circuits and significantly extending the equipment's operational lifespan.
Mold Overload Protection: An intelligent built-in safeguard automatically halts operation if excessive stress or resistance is detected, protecting both the delicate cutting tools and the generator's core from catastrophic damage.
To fully appreciate the transformative impact of the 2000BL Series on your manufacturing processes, it is essential to explore its core engineering dimensions. This equipment is not just a standard tool; it is a comprehensive solution engineered to address the most pressing challenges in modern assembly, fabrication, and quality assurance.
Achieving absolute consistency across thousands of units requires uncompromising control technology.
Built-in automatic frequency tracking ensures the generator always operates at peak resonance without manual tuning.
Real-time position feedback control guarantees consistent weld depth and structural integrity on every cycle.
0.1-second level welding time precision allows for minute micro-adjustments on highly delicate electronic components.
Three-stage heat micro-adjustment and voltage self-adaptation maintain absolute consistency, even during facility power fluctuations.
Your facility's profitability is directly tied to the speed and reliability of your assembly line.
High-frequency ultrasonic vibrations create high-strength solid welds instantaneously, eliminating curing bottlenecks.
Completely bypasses the need for the drying times associated with external liquid adhesives.
Lightning-fast welding speeds drastically reduce cycle times per unit, multiplying daily output.
Seamless integration into existing daily production lines minimizes disruptive downtime during equipment upgrades.
Industrial environments demand equipment that can withstand rigorous, continuous use without faltering.
Standard mold overload protection prevents catastrophic failures during high-stress or accidental misuse scenarios.
Multiple safety mechanisms shield the operator and the machine from unexpected electrical anomalies.
Highly resilient against harsh, corrosive environments, such as agricultural manure belt processing facilities.
Engineered for continuous, stable 24/7 operation with an exceptionally low failure rate, ensuring maximum uptime.
Versatility is key for facilities handling diverse product portfolios and shifting market demands.
Perfectly suited for the welding, spot welding, riveting, and edge cutting of various thermoplastic materials.
Flawlessly processes non-woven fabrics and chemical fiber cloths without causing frayed edges or burn marks.
Supports 3-15mm standard welding heads, with full customization available to match unique product geometries.
Covers a vast array of applications, from medical mask production and home textiles to precision electronic part assembly.
Operator comfort directly correlates with assembly precision and reduced workplace injury claims.
Ultra-compact dimensions (36 x 21 x 10 cm) free up valuable, limited workbench space.
Lightweight construction (just 3.48 kg) allows for effortless transportation across different zones of the facility.
Choice of pistol grip or straight handle accommodates different operator preferences and complex angles of approach.
Straightforward LED interface and rotary controls lower the training barrier, enabling immediate deployment for new hires.
Evaluating the Total Cost of Ownership (TCO) is critical for long-term procurement strategies.
Backed by a comprehensive 1-year warranty for complete peace of mind and financial security.
Streamlined structural design facilitates quick, hassle-free daily cleaning and routine preventative maintenance.
Pure physical ultrasonic welding process requires zero consumable materials like glue, thread, or metal staples.
Significantly lowers long-term operational and environmental compliance expenses by eliminating chemical waste.
Selecting the right equipment supplier is just as critical as the technology itself. As a dedicated manufacturer with deep, proven roots in ultrasonic technology, we understand the rigorous demands of high-volume production environments. Our commitment goes beyond simply delivering a product; we provide a strategic partnership aimed at optimizing your operational efficiency and elevating your end-product quality.
Direct Manufacturer Advantage: By sourcing directly from our factory floor, you eliminate intermediary markups, ensuring you receive premium technology at the most competitive price point available.
Stringent Quality Control: Every single generator undergoes rigorous, multi-stage testing protocols before leaving our facility, guaranteeing out-of-the-box reliability and immediate performance.
Customization Capabilities: We recognize that no two production lines are identical. Our dedicated engineering team is ready to customize welding horns and parameters to match your specific material and geometric requirements.
Responsive Technical Support: Our seasoned technical experts are always on standby to assist with integration, troubleshooting, and process optimization, ensuring your assembly lines never stop moving.
Global Supply Chain Expertise: With years of experience fulfilling large-scale industrial orders, we guarantee secure, perfectly packaged, and timely delivery to your facilities, regardless of geographical location.
What materials is this device suitable for welding?
The 2000BL Series excels at fusing thermoplastic plastics (such as ABS, PC, PE, and PP), non-woven fabrics, and chemical fiber cloths. The high-frequency vibrations create localized heat through friction, forming a permanent molecular bond without degrading the surrounding material.
How does the automatic frequency tracking feature improve the welding process?
Is this equipment difficult to operate for newly trained assembly line workers?
Is the equipment stable in operation during high-volume production?
Can the welding head be customized to fit unique product geometries?
What is the expected maintenance routine to keep the generator functioning optimally?
